LED Bollard Light – MBL02

Name: LED Bollard Light – MBL02
Brand: ForgeLightCo

ForgeLightCoSKU: MBL0224W27VDDKYYYRYY

Model: MBL0224W27VDDKYYYRYY

Price:

$112.94

Quantity:

Quote required

This fixture ships freight. Request a quote and we'll price shipping to your job.

Request a Quote

ModelMBL0224W27VDDKYYYRYYSKUMBL0224W27VDDKYYYRYY

Mester model	MBL0224W27VDDKYYYRYY
Display label	24W · 120-277V · R
Wattage	24W
Lumens	3200 lm
Voltage	AC120-277V
Dimming	0-10V Dimmable
Led chip	2835
Cct	3000K/4000K/5000K

The photo shows a representative fixture from this range — appearance and size vary by configuration.

Manufacturer Warranty Five-year limited warranty.

Download Cut Sheet (PDF) Request a Quote

View Models & Pricing — click a model in the table to select it, then add to cart or request a quote for project and bid pricing, any quantity.

Model	Lumens	Price
	3200 lm	$112.94Quote required
	3200 lm	$112.94Quote required
	3200 lm	$125.87Quote required
	3200 lm	$121.07Quote required
	3200 lm	$121.07Quote required
	3200 lm	$132.67Quote required
	3200 lm	$53.74Quote required
	3200 lm	$53.74Quote required
	3200 lm	$61.20Quote required

Prices are per unit. Click a model to select it — or request a quote for project and bid pricing, any quantity.

MBL02 is a die-cast aluminum bollard at 24W on 120-277V with 0-10V dimming, for walkways, courtyards, and site paths.

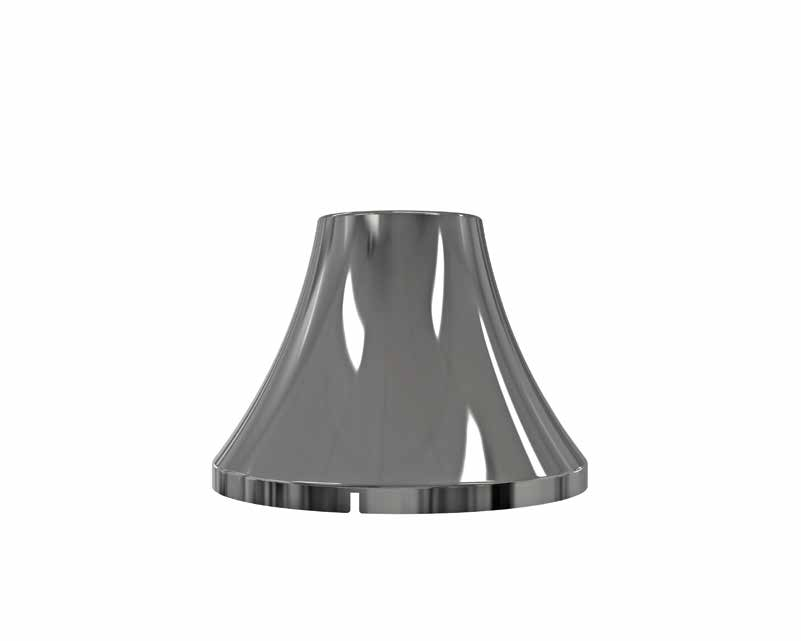

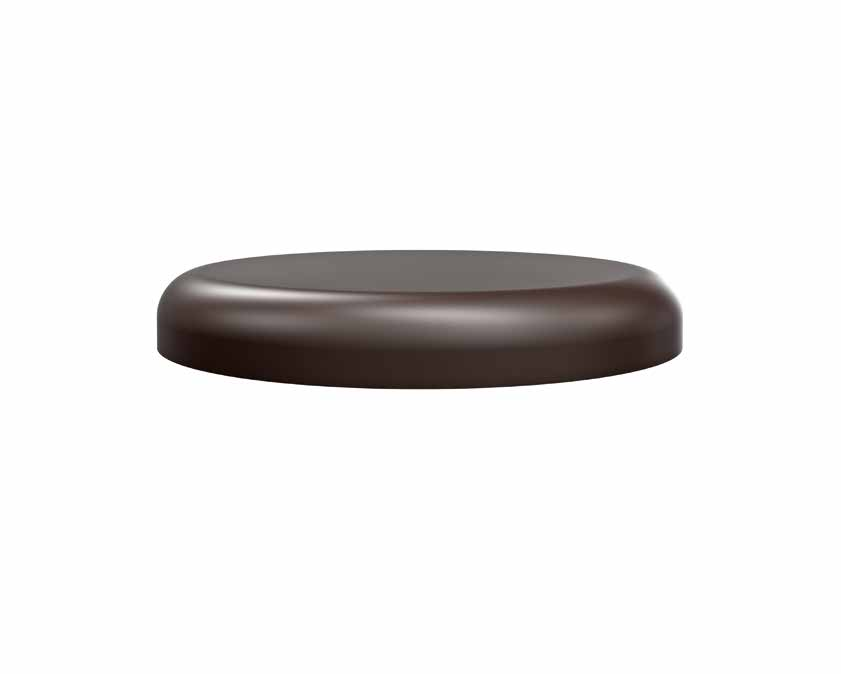

Appearance is a real ordering decision on this family. It is built with three top structures — dome, square, and round — each with its own cap geometry at an overall height near 50 inches, and the configurations also differ in optical treatment. The model number governs which cap and optic arrive, so specify from the model rather than from a photograph.

Some configurations are supplied as the luminaire head only, without the pole and mount. Those are not a complete bollard: check which form you are ordering before it goes onto a submittal.

Color temperature options are 3000K, 4000K, and 5000K. Rated life is 50,000 hours across an operating range of -40°C to 45°C (-40°F to 113°F), at 80 CRI.
