LED Dusk-to-Dawn Light MDD04

Roll over image to zoom in Click on image to zoom

ModelMDD0420W12VXXKYYSKUMDD0420W12VXXKYY

Mester model	MDD0420W12VXXKYY
Display label	20W · 120V
Wattage	20W
Lumens	2100 lm
Voltage	AC120V
Dimming	Not
Led chip	2835
Cct	3000K/4000K/5000K

Manufacturer Warranty 3 year

Download Cut Sheet (PDF) Request a Quote

View Models & Pricing — click a model in the table to select it, then add to cart or request a quote for project and bid pricing, any quantity.

Model	Lumens	Price
	2100 lm	$18.41
	4200 lm	$20.41

Prices are per unit. Click a model to select it — or request a quote for project and bid pricing, any quantity.

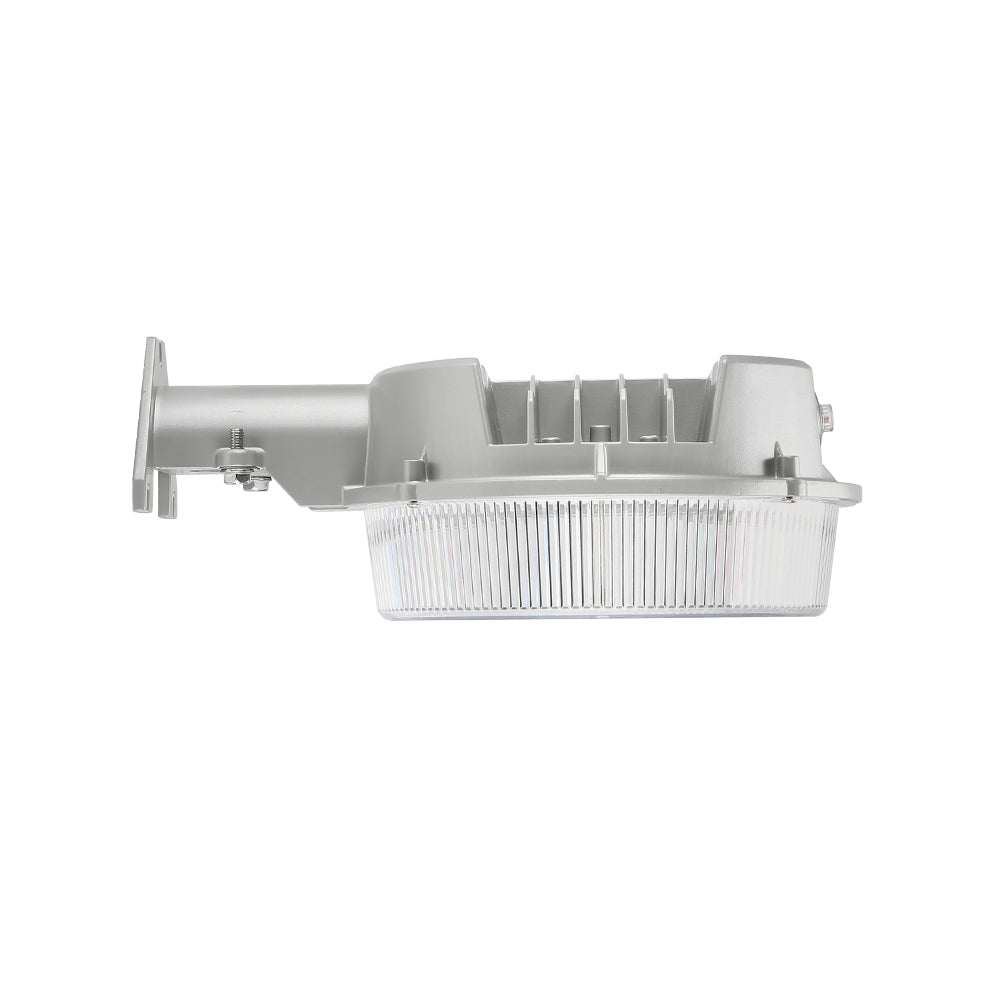

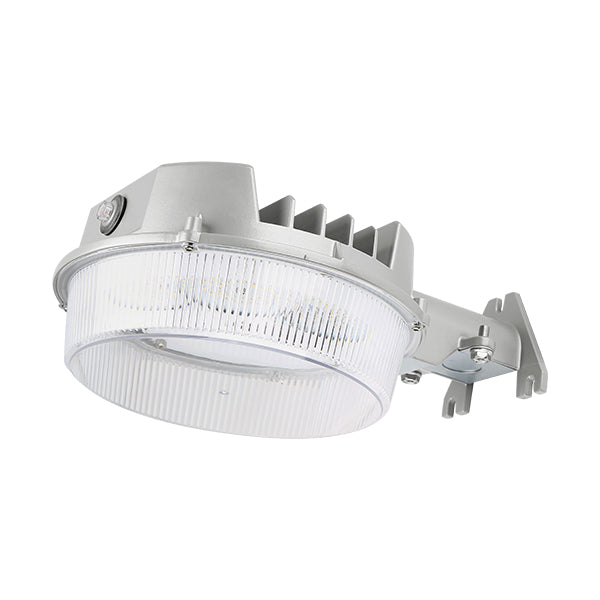

MDD04 is a round dusk-to-dawn fixture with an integral photocell: it switches itself on at dark and off at daylight, with no separate control wiring to run. Typical work is barns, sheds, yard poles, and service entries.

Both outputs share one body — about 10.8 inches across and 3.7 inches deep — in die-cast aluminum with a polycarbonate lens and a silver gray finish. Both run on 120V and carry no dimming input.

Color temperature is ordered as 4000K or 5000K, at 80 CRI. Rated life is 50,000 hours across an operating range of -30°C to 40°C (-22°F to 104°F). The pole mounting arm is a separate accessory, not part of the fixture.
