LED High Bay – MHB16

ForgeLightCoSKU: MHB16150W27VXXKYYYY3

Model: MHB16150W27VXXKYYYY3

Price:

$56.51

Quantity:

ModelMHB16150W27VXXKYYYY3SKUMHB16150W27VXXKYYYY3

Mester model	MHB16150W27VXXKYYYY3
Display label	150W · 120-277V
Wattage	150W
Lumens	24500 lm
Voltage	AC120-277V
Dimming	0-10V Dimmable
Led chip	2835
Cct	3000K/4000K/5000K

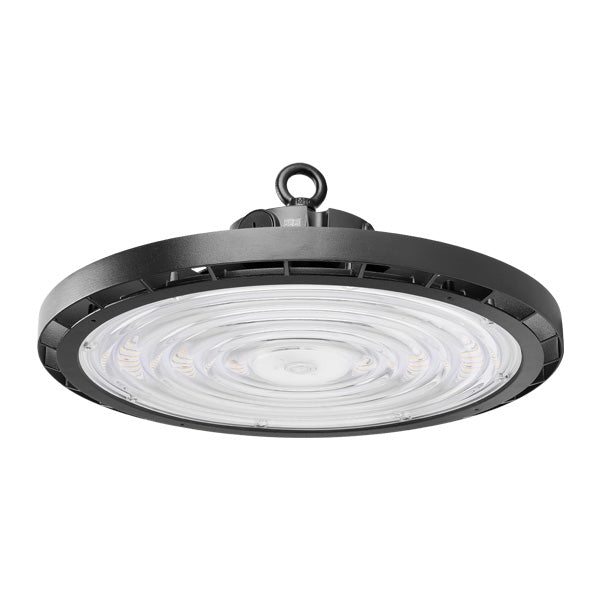

The photo shows a representative fixture from this range — appearance and size vary by configuration.

Manufacturer Warranty Five year limited warranty.

Download Cut Sheet (PDF) Request a Quote

View Models & Pricing — click a model in the table to select it, then add to cart or request a quote for project and bid pricing, any quantity.

Model	Lumens	Price
	24500 lm	$56.51
	31000 lm	$66.56
	41000 lm	$75.52
	24500 lm	$96.00
	31000 lm	$115.20
	41000 lm	$120.32

Prices are per unit. Click a model to select it — or request a quote for project and bid pricing, any quantity.

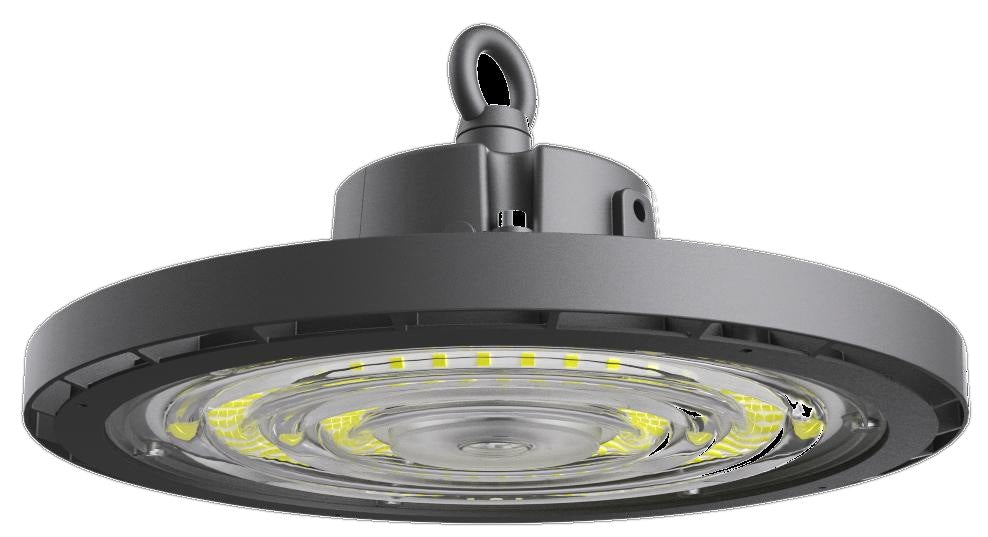

MHB16 is a round LED high bay whose beam angle is set by a DIP switch on the fixture: 70°, 90° or 110°, chosen on the unit rather than fixed at order time. The switch is internal, so one part number serves all three distributions and nothing about the exterior changes with the setting.

It is offered at 150W, 200W and 250W, each in a 120-277V and a 277-480V build, all 0-10V dimmable. Three body sizes carry the three wattages — Ø12.3 in, Ø14.18 in and Ø15.5 in, between 6.26 in and 6.4 in deep — so the 250W is a visibly wider fixture than the 150W.

The housing is die-cast aluminum with a polycarbonate lens in a black finish, rated IP65 for ingress and IK08 for impact. Color temperature is offered at 3000K, 4000K and 5000K at 80 CRI, rated life is 50,000 hours, and the rated ambient range is -40°C to 55°C (-40°F to 131°F).
