MHR01 Round Industrial LED Luminaire | 100W, 200W

LED Hazardous Location Round Luminaires – MHR01

Roll over image to zoom in Click on image to zoom

ModelMHR01100W27VXXKYYTRYSKUMHR01100W27VXXKYYTRY

Mester model	MHR01100W27VXXKYYTRY
Display label	100W · 120-277V
Wattage	100W
Lumens	15500 lm
Voltage	AC120-277V
Dimming	0-10V Dimmable
Led chip	2835
Cct	3000K/4000K/5000K/5700K

Manufacturer Warranty Five-year limited warranty.

Download Cut Sheet (PDF) Request a Quote

View Models & Pricing — click a model in the table to select it, then add to cart or request a quote for project and bid pricing, any quantity.

Model	Lumens	Price
	15500 lm	$202.67
	31500 lm	$216.94
	15500 lm	$215.60
	31500 lm	$259.20

Prices are per unit. Click a model to select it — or request a quote for project and bid pricing, any quantity.

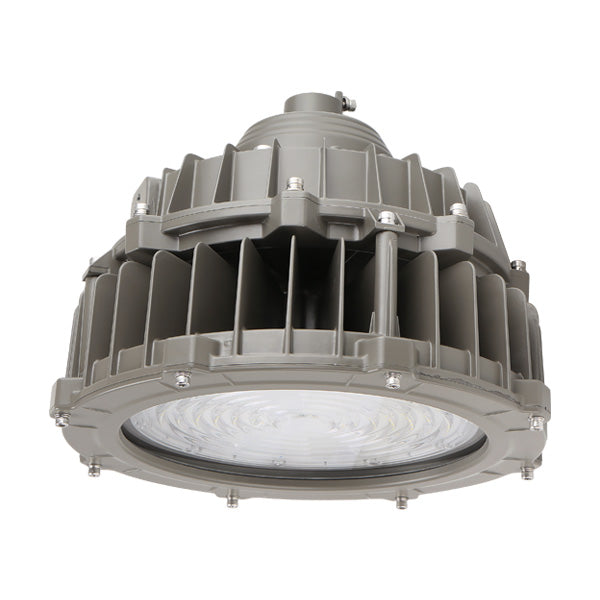

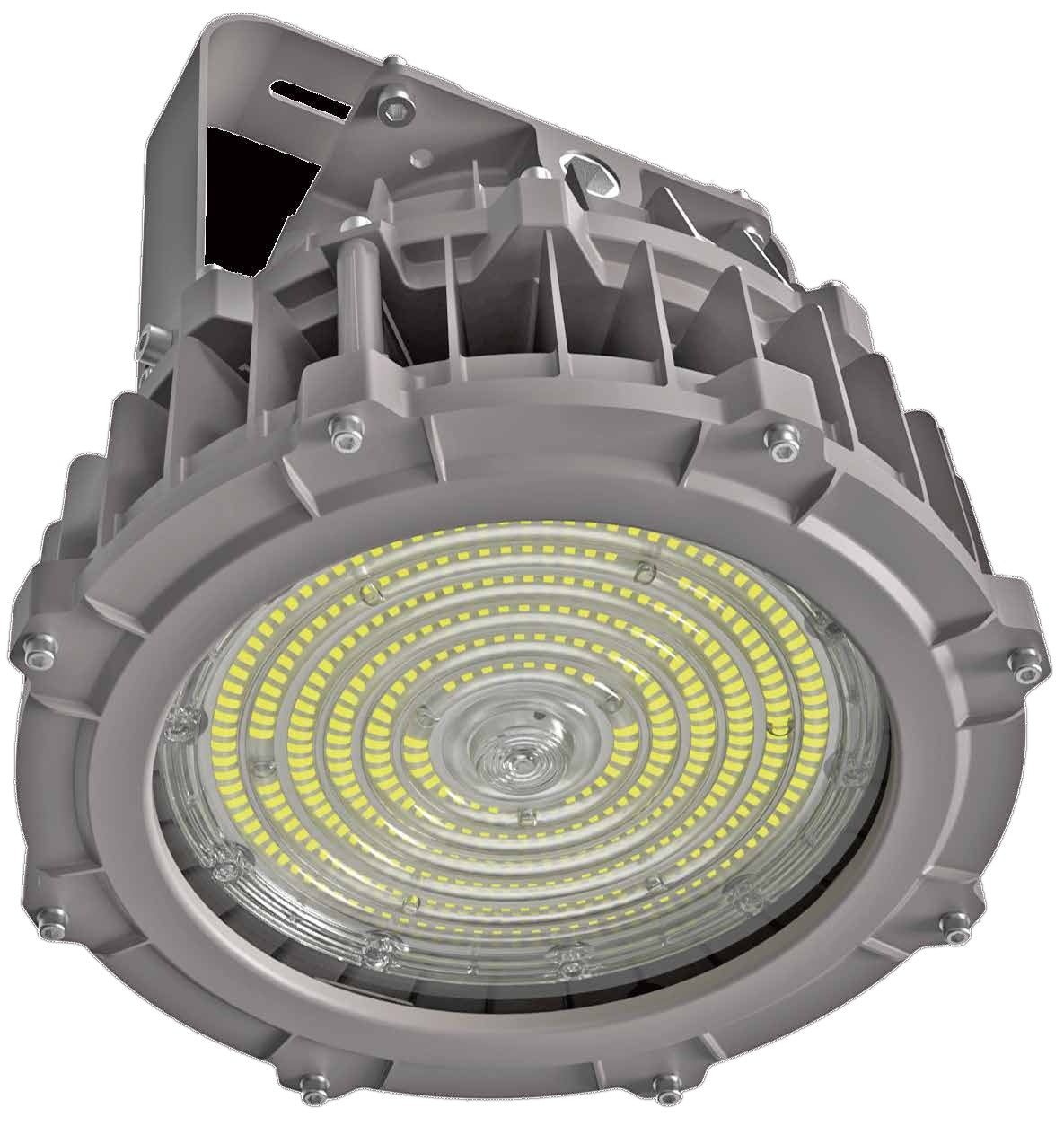

MHR01 is a round industrial LED luminaire built on a single Ø13 in cast aluminum body, offered at 100W and 200W. Each wattage is available in a 120-277V and a 347-480V build; the difference between them is the driver, not the fixture, so both present and mount identically.

The casting uses a low-copper aluminum alloy. Optic and color temperature are both resolved in the part number rather than on the unit: 60°, 90° or 120° distribution, and 3000K, 4000K, 5000K or 5700K.

Color rendering is 70 CRI, rated life is 50,000 hours, and the rated ambient range is -40°C to 65°C (-40°F to 149°F). All four builds are 0-10V dimmable.

The builds carried here are supplied for trunnion mounting. Ceiling, pendant, wall and round-pole bracket kits are available separately as compatible accessories.
