Name: Post Top Light – MPL04
Brand: ForgeLightCo

Roll over image to zoom in Click on image to zoom

ModelMPL04130W34VDDKYYYYSKUMPL04130W34VDDKYYYY

Mester model	MPL04130W34VDDKYYYY
Display label	130W · 120-347V
Wattage	130W
Lumens	16510 lm
Voltage	AC120-347V
Dimming	0-10V Dimmable
Led chip	2835
Cct	3000K/4000K/5000K

Manufacturer Warranty Five-year limited warranty.

Download Cut Sheet (PDF) Request a Quote

View Models & Pricing — click a model in the table to select it, then add to cart or request a quote for project and bid pricing, any quantity.

Model	Lumens	Price
	16510 lm	$210.80Quote required
	18330 lm	$221.74Quote required
	16510 lm	$227.87Quote required
	18330 lm	$238.00Quote required

Prices are per unit. Click a model to select it — or request a quote for project and bid pricing, any quantity.

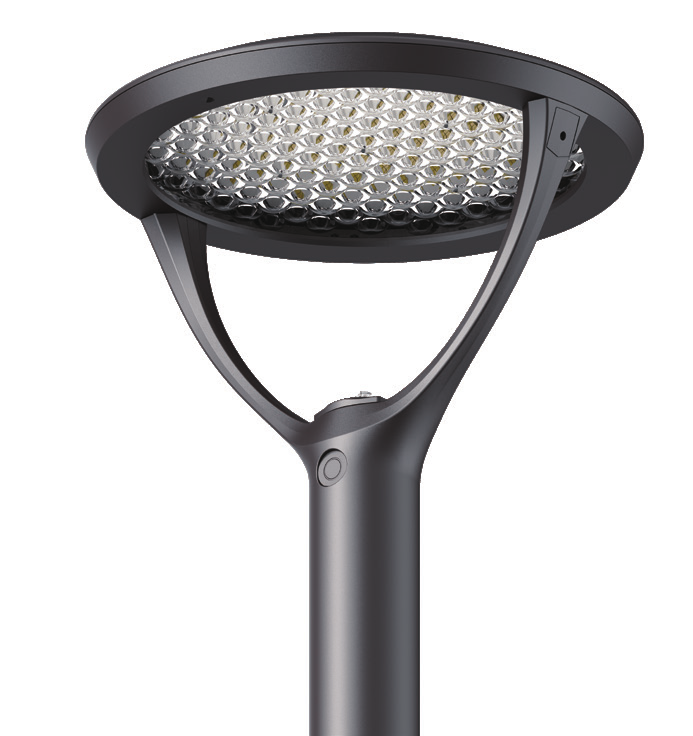

The MPL04 is a post-top luminaire for parking, campus and streetscape poles. All four configurations are 130W builds, split across two input ranges, 120-347V and 277-480V, and all are 0-10V dimmable.

What separates the models is the optic, not the output. Two of the four carry a field-adjustable optic spanning Type III, Type IV and Type V distributions. The other two use a diffused lens, and the exact diffuser is confirmed at order rather than fixed by the part number. Treat the optic as a specification decision on this family and check it per model.

Color temperature options are 3000K, 4000K and 5000K, CRI is 80 or better, the finish is black and the housing is die-cast aluminum. The fixture is rated for ambient temperatures from -40°C to 40°C with a 50,000 hour rated life. Every configuration in this family is quoted rather than sold through the cart.
