LED Sports Light – MSL01

Name: LED Sports Light – MSL01
Brand: ForgeLightCo

ForgeLightCoSKU: MSL01505W27VXXKYYYY1

Model: MSL01505W27VXXKYYYY1

Price:

$418.94

Quantity:

Quote required

This fixture ships freight. Request a quote and we'll price shipping to your job.

Request a Quote

ModelMSL01505W27VXXKYYYY1SKUMSL01505W27VXXKYYYY1

Mester model	MSL01505W27VXXKYYYY1
Display label	505W · 120-277V
Wattage	505W
Lumens	70000 lm
Voltage	AC120-277V
Dimming	0-10V Dimmable
Led chip	5050
Cct	4000K/5000K/5700K

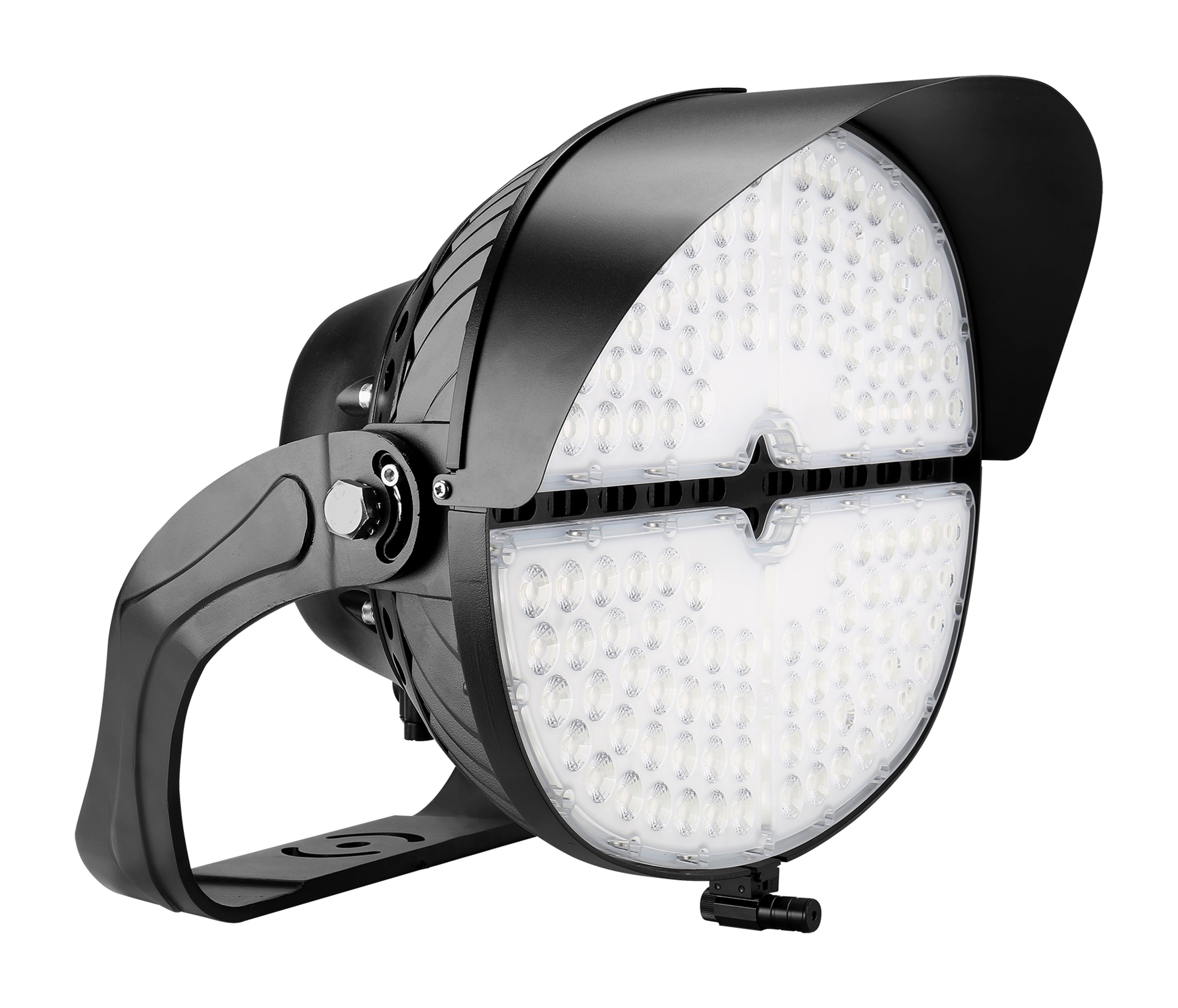

The photo shows a representative fixture from this range — appearance and size vary by configuration.

Input voltage for the 347–480V builds is confirmed at order. Request full specifications.

Manufacturer Warranty 10 year

Download Cut Sheet (PDF) Request a Quote

View Models & Pricing — click a model in the table to select it, then add to cart or request a quote for project and bid pricing, any quantity.

Model	Lumens	Price
	70000 lm	$418.94Quote required
	91000 lm	$486.00Quote required
	70000 lm	$498.00Quote required
	91000 lm	$482.80Quote required
	120000 lm	$643.34Quote required
	120000 lm	$669.07Quote required

Prices are per unit. Click a model to select it — or request a quote for project and bid pricing, any quantity.

The MSL01 is a high-output sports and area floodlight, offered at 505W, 600W and 850W, each in two input-voltage classes. All six configurations are 0-10V dimmable and are quoted rather than sold through the cart.

The housing is a sealed die-cast enclosure rated IP65 with a black finish, a 100,000 hour rated life and an operating range from -40°C to 55°C. Color temperature options are 4000K, 5000K and 5700K, and CRI is offered at 70, 80 and 90. Beam distribution is a specified option on this family rather than a fixed property of the fixture, so the NEMA distribution has to be called out on the order.

MSL01 is not one body. The range spans more than one housing size, and which size a given output lands on has to be confirmed against the exact model. Settle the housing size and effective projected area for the configuration you are specifying before poles, brackets and aiming are laid out.
