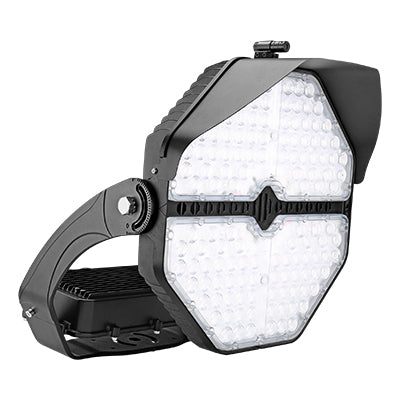

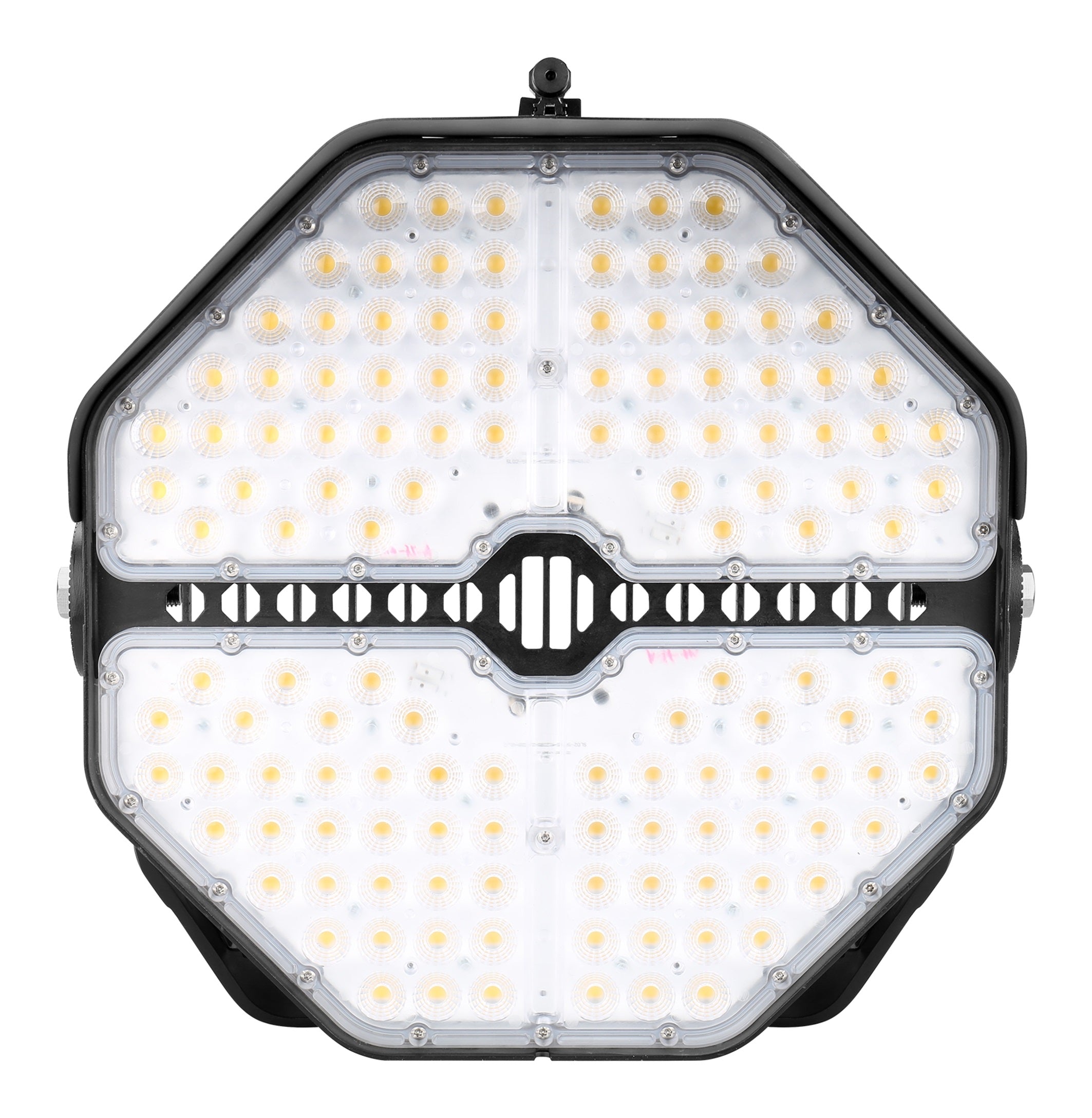

Name: LED Sports Light – MSL02
Brand: ForgeLightCo

Roll over image to zoom in Click on image to zoom

ModelMSL02510W27VXXKYYYY1SKUMSL02510W27VXXKYYYY1

Mester model	MSL02510W27VXXKYYYY1
Display label	510W · 120-277V
Wattage	510W
Lumens	71000 lm
Voltage	AC120-277V
Dimming	0-10V Dimmable
Led chip	5050
Cct	4000K/5000K/5700K

Manufacturer Warranty 5 YEAR LIMITED WARRANTY*

Download Cut Sheet (PDF) Request a Quote

View Models & Pricing — click a model in the table to select it, then add to cart or request a quote for project and bid pricing, any quantity.

Model	Lumens	Price
	71000 lm	$427.07Quote required
	71000 lm	$498.00Quote required

Prices are per unit. Click a model to select it — or request a quote for project and bid pricing, any quantity.

The MSL02 is a single-output sports and area floodlight. Both configurations are 510W builds and differ only in input-voltage class, so the fixture, the optic and the mechanical envelope are identical between them.

Distribution is NEMA 4Hx4V across the family, and there is no optic axis to specify. The housing is a sealed die-cast enclosure rated IP65 with a black finish, a 100,000 hour rated life and an operating range from -40°C to 55°C. Color temperature options are 4000K, 5000K and 5700K, CRI is offered at 70, 80 and 90, and both models are 0-10V dimmable.

Both configurations are quoted rather than sold through the cart. The per-model spec table on this page carries the exact output, lumen figure and input voltage for each.
