LED Sports Light – MSL03

Name: LED Sports Light – MSL03
Brand: ForgeLightCo

ForgeLightCoSKU: MSL03500W27VXXKYYYYY

Model: MSL03500W27VXXKYYYYY

Price:

$422.94

Quantity:

Quote required

This fixture ships freight. Request a quote and we'll price shipping to your job.

Request a Quote

ModelMSL03500W27VXXKYYYYYSKUMSL03500W27VXXKYYYYY

Mester model	MSL03500W27VXXKYYYYY
Display label	500W · 120-277V
Wattage	500W
Lumens	70000 lm
Voltage	AC120-277V
Dimming	0-10V Dimmable
Led chip	5050
Cct	4000K/5000K/5700K

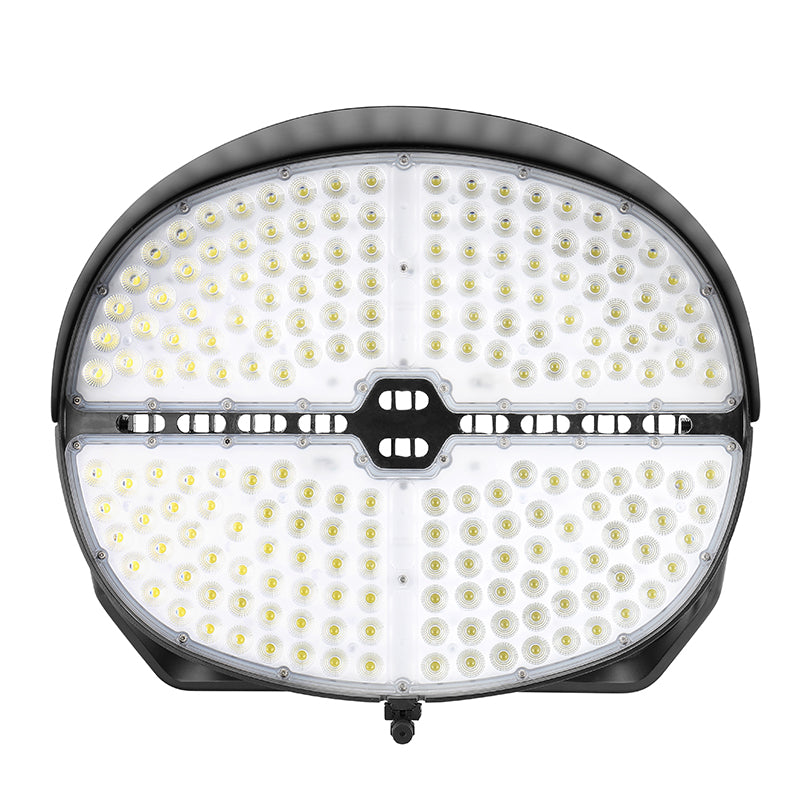

The photo shows a representative fixture from this range — appearance and size vary by configuration.

Input voltage for the 500W 347–480V build is confirmed at order. Request full specifications.

Manufacturer Warranty 5 year

Download Cut Sheet (PDF) Request a Quote

View Models & Pricing — click a model in the table to select it, then add to cart or request a quote for project and bid pricing, any quantity.

Model	Lumens	Price
	70000 lm	$422.94Quote required
	70000 lm	$498.00Quote required
	92000 lm	$500.54Quote required
	120000 lm	$684.14Quote required
	160000 lm	$922.14Quote required

Prices are per unit. Click a model to select it — or request a quote for project and bid pricing, any quantity.

The MSL03 is a sports and high-mast floodlight offered at 500W, 600W, 850W and 1200W. All five configurations are 0-10V dimmable and are quoted rather than sold through the cart.

The range is built in two housing sizes. The 500W and 600W are the smaller body; the 850W and 1200W are a visibly larger one with a bigger aperture, a denser array and its own effective projected area. The smallest and the largest output do not share a body, so size poles, brackets and aiming per model rather than per family.

There is a further mounting choice. The driver enclosure can sit attached to the fixture or remote from it, and the two arrangements have different silhouettes, so call out which one you need on the order.

Beam distribution options are NEMA 2Hx2V, 3Hx3V and 4Hx4V. The housing is a sealed die-cast enclosure rated IP65 with a black finish, a 100,000 hour rated life and an operating range from -40°C to 45°C. Color temperature options are 4000K, 5000K and 5700K, and CRI is offered at 70, 80 and 90.
