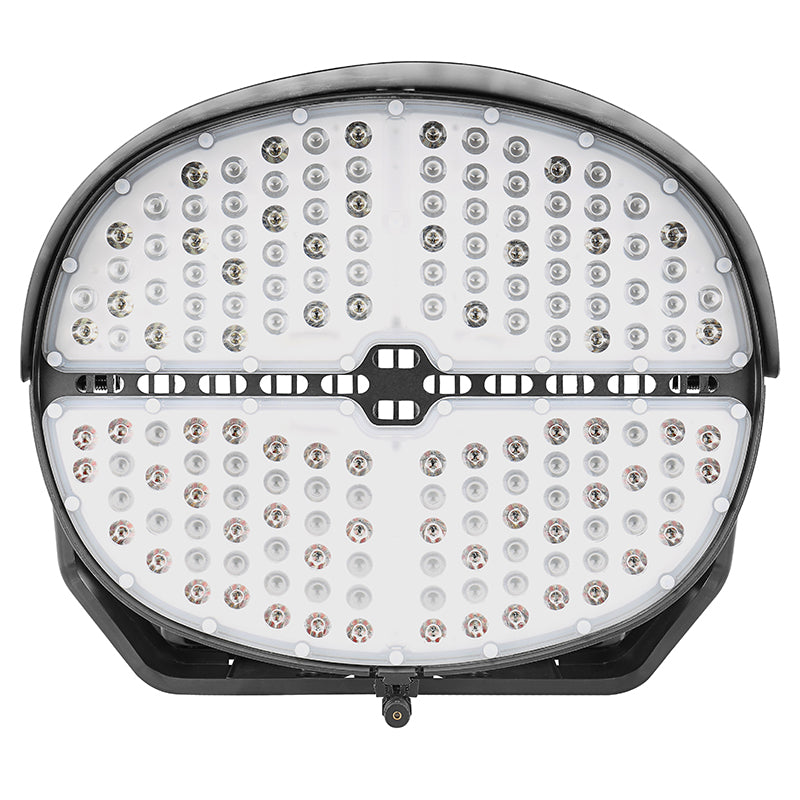

Name: LED Sports Light – MSL04
Brand: ForgeLightCo

Roll over image to zoom in Click on image to zoom

ModelMSL04500W27VRGBYYYYYSKUMSL04500W27VRGBYYYYY

Mester model	MSL04500W27VRGBYYYYY
Display label	500W · 120-277V
Wattage	500W
Lumens	20000 lm
Voltage	AC120-277V
Dimming	0-10V Dimmable
Led chip	2020 RGB
Cct	RGB

Manufacturer Warranty 5 year

Download Cut Sheet (PDF) Request a Quote

View Models & Pricing — click a model in the table to select it, then add to cart or request a quote for project and bid pricing, any quantity.

Model	Lumens	Price
	20000 lm	$764.27Quote required
	20000 lm	$852.67Quote required

Prices are per unit. Click a model to select it — or request a quote for project and bid pricing, any quantity.

The MSL04 is a color-changing RGB sports and area floodlight. It is one build offered in two input-voltage classes, so the fixture itself is identical between the two configurations.

Output is RGB rather than a fixed white color temperature. That makes this a fixture for color effect and event lighting, not a substitute for a white sports luminaire, and its lumen figure is not directly comparable with that of a white fixture.

Beam distribution options are NEMA 3Hx3V, 4Hx4V, 5Hx5V and 6Hx6V. The housing is a sealed die-cast enclosure rated IP65 with a black finish, a 100,000 hour rated life and an operating range from -40°C to 50°C. Both configurations are 0-10V dimmable and are quoted rather than sold through the cart.
