LED Area Light MAL05 | ForgeLightCo

Roll over image to zoom in Click on image to zoom

ModelMAL05100W27VXXKYYYYYSKUMAL05100W27VXXKYYYYY

Mester model	MAL05100W27VXXKYYYYY
Display label	100W · 120-277V
Wattage	100W
Lumens	14200 lm
Voltage	AC120-277V
Dimming	0-10V Dimmable
Led chip	2835
Cct	4000K/5000K
Dlc	Premium

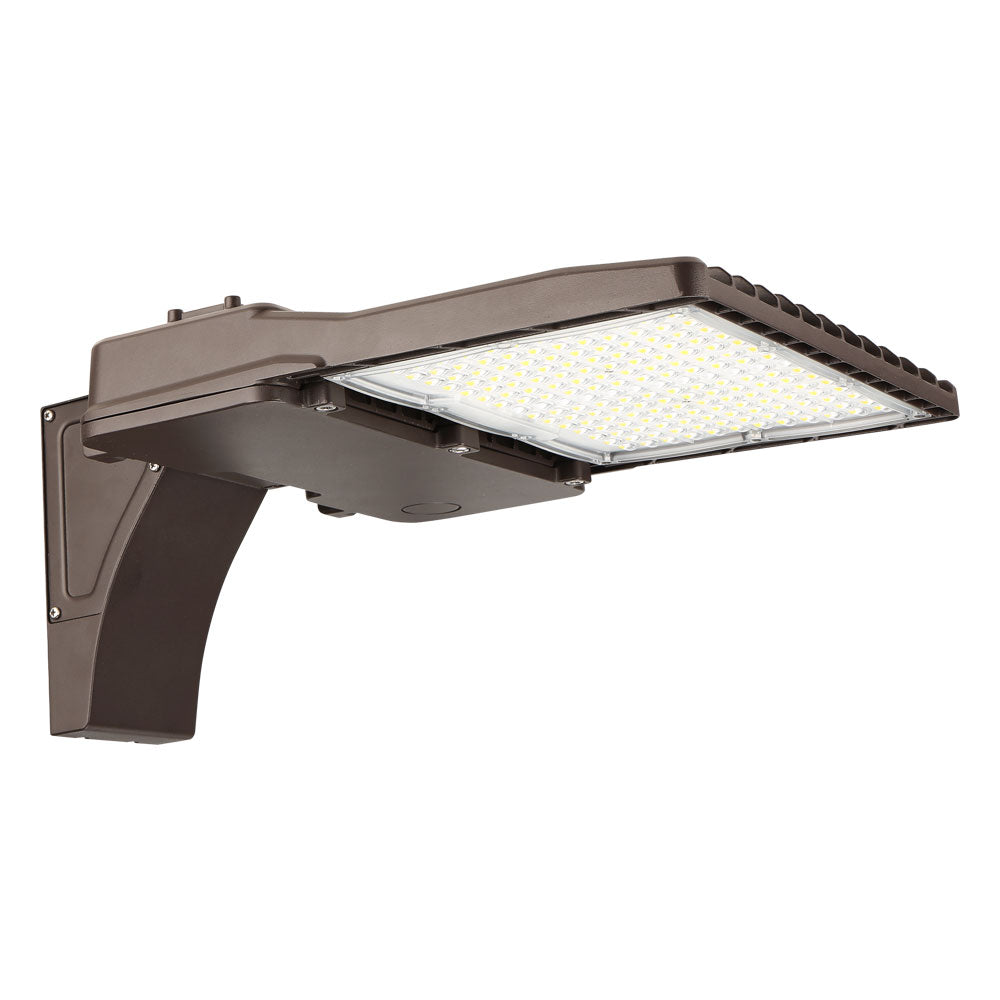

The photo shows a representative fixture from this range — appearance and size vary by configuration.

Manufacturer Warranty 5 year

Download Cut Sheet (PDF) Request a Quote

View Models & Pricing — click a model in the table to select it, then add to cart or request a quote for project and bid pricing, any quantity.

Model	Lumens	Price
	14200 lm	$80.40
	21000 lm	$99.84
	26000 lm	$94.80
	35000 lm	$127.36
	42000 lm	$136.96
	14200 lm	$90.00
	21000 lm	$131.52
	26000 lm	$113.74
	35000 lm	$153.60
	42000 lm	$188.16

Prices are per unit. Click a model to select it — or request a quote for project and bid pricing, any quantity.

MAL05 is an exterior area and site luminaire for parking lots, drive aisles, and other open-site work where the fixture goes up on a pole and stays there. The body is a one-piece aluminum die-casting closed with a polycarbonate lens.

This is not one fixture scaled up and down. The family is built in three size classes, so a 300W head is a physically longer luminaire than a 100W head rather than the same body driven harder — worth checking against your pole and mount spec before the order goes in.

Distributions follow IES Type III, IV, and V patterns, and color temperature is ordered as 4000K or 5000K. Every build offers 0-10V dimming, and the range from 100W to 300W is available in both 120-277V and 347-480V.

Rated life is 100,000 hours across an operating range of -40°C to 40°C (-40°F to 104°F), at 70 CRI. Every build includes a square/round pole mount.
