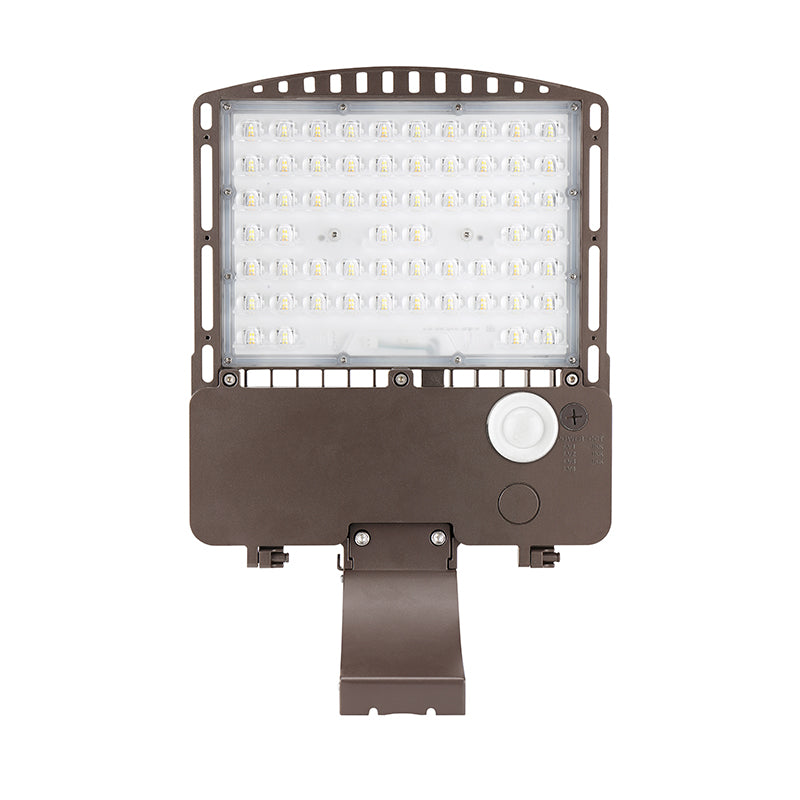

LED Area Light – MAL08

MAL08 is a pole-mounted area luminaire offered from 100W to 400W, for parking lots, yards, and general site lighting. The housing is die-cast aluminum with a polycarbonate lens.

Two size classes cover that range: the 100W, 140W, and 180W builds share one body, and the 250W, 300W, and 400W builds use a visibly longer one. Specify the wattage and its size class together — this family is not a single fixture across all six outputs.

A dial on the fixture sets color temperature and steps output through four levels, so one unit on the shelf can be trimmed to the site instead of reordered. Selectable color temperatures are 3000K, 4000K, and 5000K; on the 400W build the choices are 4000K and 5000K. Distributions follow IES Type II, III, IV, and V patterns.

All builds are 0-10V dimmable, in either 120-277V or 347-480V. Rated life is 100,000 hours across an operating range of -40°C to 40°C (-40°F to 104°F), at 70 CRI. Every build includes a square/round pole mount.
