LED Canopy Light FL-MCP08

Roll over image to zoom in Click on image to zoom

ModelFL-MCP0840W27VDDKDYYADYSKUFL-MCP0840W27VDDKDYYADY

Display label	40W · 120-277V
Wattage	40W
Lumens	6200 lm
Voltage	AC120-277V
Dimming	0-10V Dimmable
Led chip	2835
Cct	3000K/4000K/5000K

Manufacturer Warranty Five-year limited warranty.

Download Cut Sheet (PDF) Request a Quote

View Models & Pricing — click a model in the table to select it, then add to cart or request a quote for project and bid pricing, any quantity.

Model	Lumens	Price
	6200 lm	$106.50
	9400 lm	$109.50
	10500 lm	$112.50

Prices are per unit. Click a model to select it — or request a quote for project and bid pricing, any quantity.

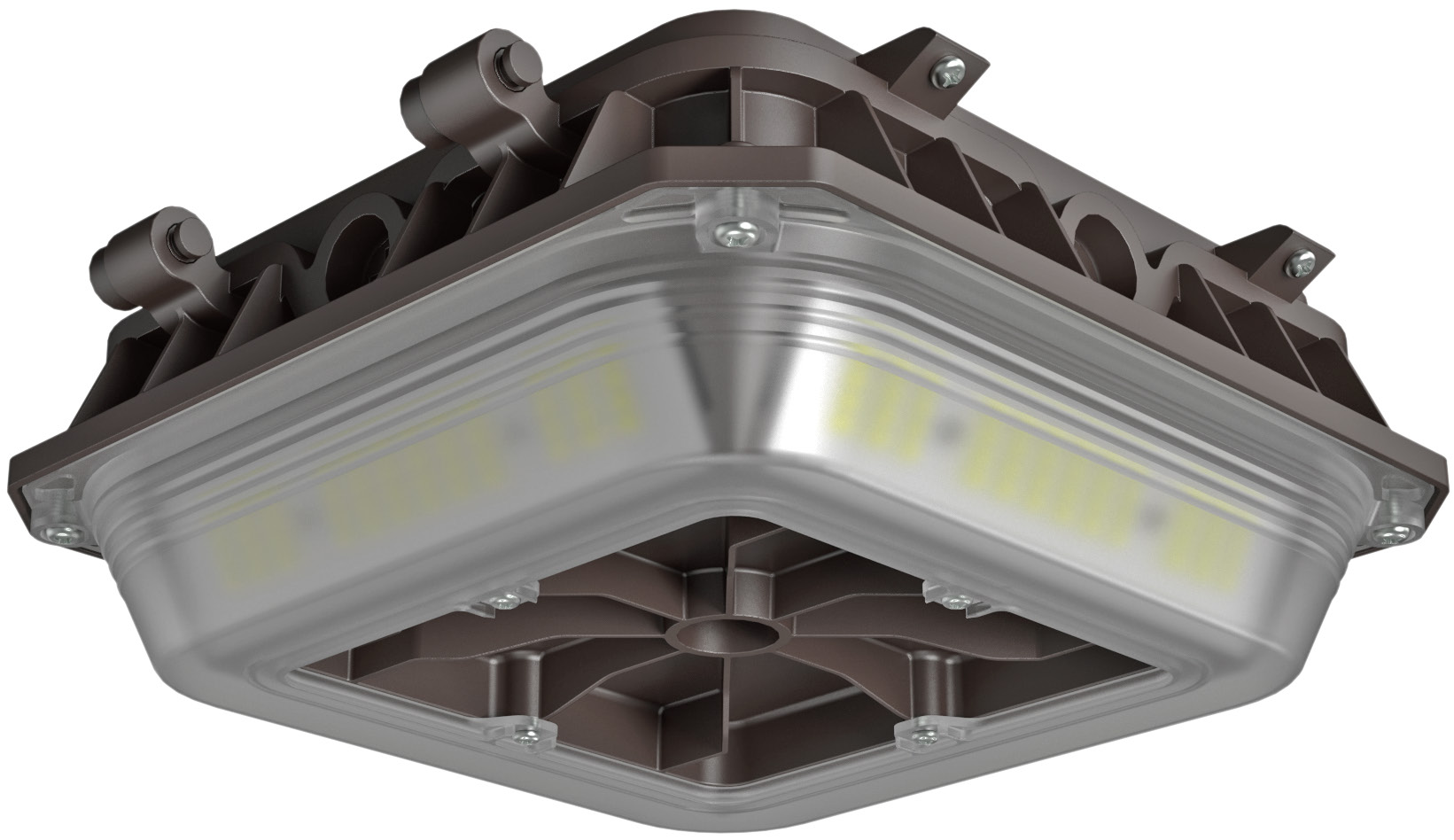

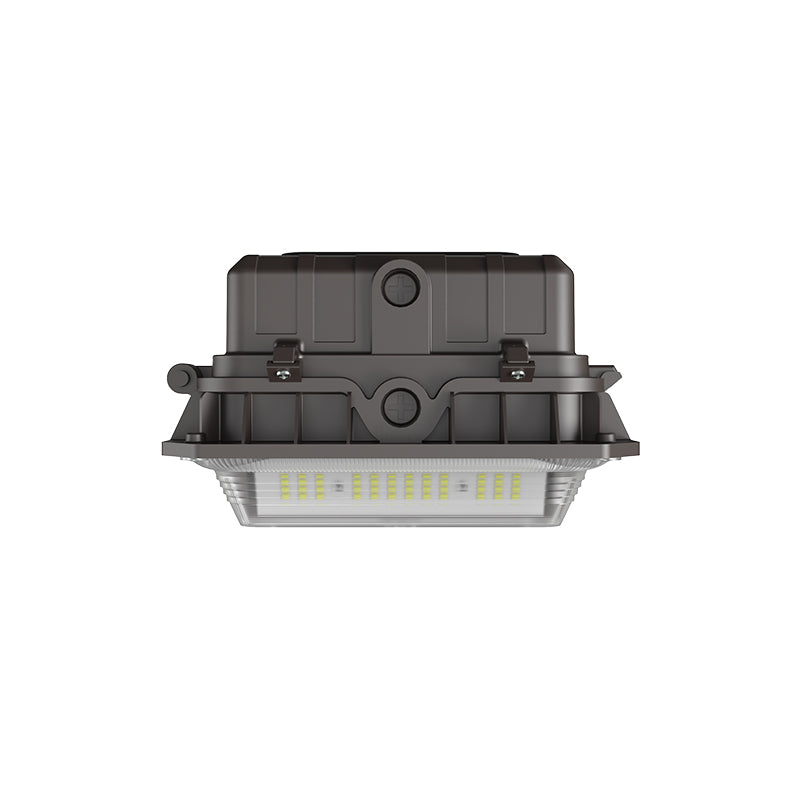

FL-MCP08 is a square low-profile canopy luminaire, 9.2 inches across and 3.3 inches deep, in a die-cast housing with a dark bronze finish. It is sized for parking decks, service canopies, and covered entries where headroom is tight and the fixture is seen from directly underneath.

All three outputs use that same body, so the footprint and the look on the deck do not change when the specified wattage does — useful when one site takes several different outputs. Color temperature and output are both set by a dial on the fixture, across 3000K, 4000K, and 5000K, and every build runs 120-277V with 0-10V dimming.

Rated life is 50,000 hours across an operating range of -40°C to 40°C (-40°F to 104°F), at 70 CRI.
