LED Dusk-to-Dawn Light FL-MDD05

Roll over image to zoom in Click on image to zoom

ModelFL-MDD0545W27VDDKYYADYSKUFL-MDD0545W27VDDKYYADY

Display label	45W · 120-277V
Wattage	45W
Lumens	6200 lm
Voltage	AC120-277V
Dimming	0-10V Dimmable
Led chip	2835
Cct	4000K/5000K in spec table (features section claims color temperature adjustable: 3000K, 4000K, 5000K)

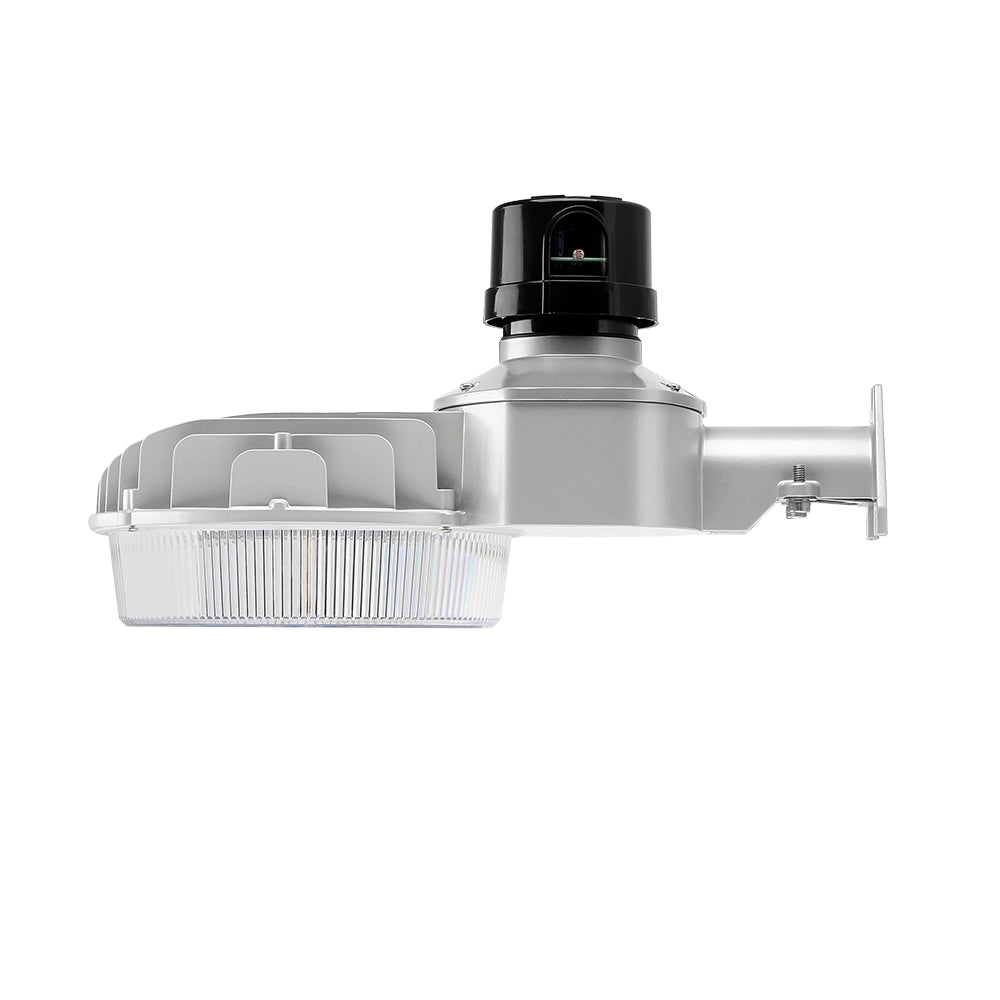

The photo shows a representative fixture from this range — appearance and size vary by configuration.

Manufacturer Warranty 5 year

Download Cut Sheet (PDF) Request a Quote

View Models & Pricing — click a model in the table to select it, then add to cart or request a quote for project and bid pricing, any quantity.

Model	Lumens	Price
	6200 lm	$105.00
	8800 lm	$111.00
	12000 lm	$115.50

Prices are per unit. Click a model to select it — or request a quote for project and bid pricing, any quantity.

FL-MDD05 is a dusk-to-dawn fixture at area-lighting outputs, for yards, lots, loading areas, and equipment pads — the same self-switching behavior as a barn light, sized to cover ground rather than a doorway.

A 3-pin photocell is part of the catalog configuration, and a dial on the fixture sets color temperature and output, so one unit can be trimmed to the mounting height and spacing it lands on. The housing is die-cast aluminum with a polycarbonate lens and a silver gray finish.

Every build runs 120-277V with 0-10V dimming, and color temperature options are 4000K and 5000K. Rated life is 50,000 hours across an operating range of -40°C to 40°C (-40°F to 104°F). Output is given per model, and the pole mounting arm is a separate accessory.
