MFD12 LED Flood Light | Selectable Beam, 30W-150W

Roll over image to zoom in Click on image to zoom

ModelMFD1230W27VDDKYYYYYSKUMFD1230W27VDDKYYYYY

Mester model	MFD1230W27VDDKYYYYY
Display label	30W · 120-277V
Wattage	30W
Lumens	4500 lm
Voltage	AC120-277V
Dimming	0-10V Dimmable
Led chip	2835
Cct	3000K/4000K/5000K (selectable)

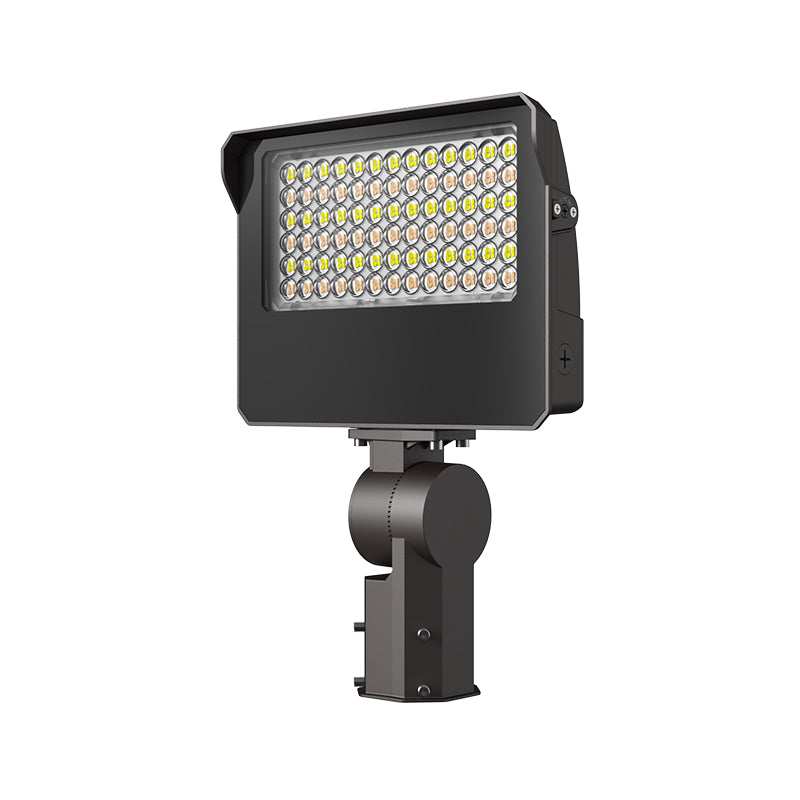

The photo shows a representative fixture from this range — appearance and size vary by configuration.

Manufacturer Warranty Five-year limited warranty.

Download Cut Sheet (PDF) Request a Quote

View Models & Pricing — click a model in the table to select it, then add to cart or request a quote for project and bid pricing, any quantity.

Model	Lumens	Price
	4500 lm	$45.60
	9130 lm	$72.96
	13280 lm	$68.00
	17860 lm	$94.54
	21960 lm	$97.20

Prices are per unit. Click a model to select it — or request a quote for project and bid pricing, any quantity.

MFD12 is an outdoor LED flood light on a die-cast aluminum body, offered from 30W to 150W at 120-277V. Two things that are usually fixed at order time are selectable on this fixture instead: color temperature across 3000K, 4000K and 5000K, and beam angle across 90°, 75° and 55°. One part number therefore serves several rows of a schedule.

The range spans three body sizes, and the difference is more than scale. The 30W, 60W and 90W builds carry a sparse array of larger lenses; the 120W and 150W builds carry a denser array of smaller ones. Mounting splits the same way — knuckle and trunnion on the 30W, 60W and 90W, slipfitter and yoke on the 120W and 150W.

Sealing is IP65 and rated life is 50,000 hours. The rated ambient range is -40°C to 45°C (-40°F to 113°F), and every build is 0-10V dimmable.
