MGC01 LED Canopy Light | 100W-160W

Roll over image to zoom in Click on image to zoom

ModelMGC01100W27VXXKWCDSKUMGC01100W27VXXKWCD

Mester model	MGC01100W27VXXKWCD
Display label	100W · 120-277V
Wattage	100W
Lumens	15000 lm
Voltage	AC120-277V
Dimming	0-10V Dimmable
Led chip	2835
Cct	4000K/5000K

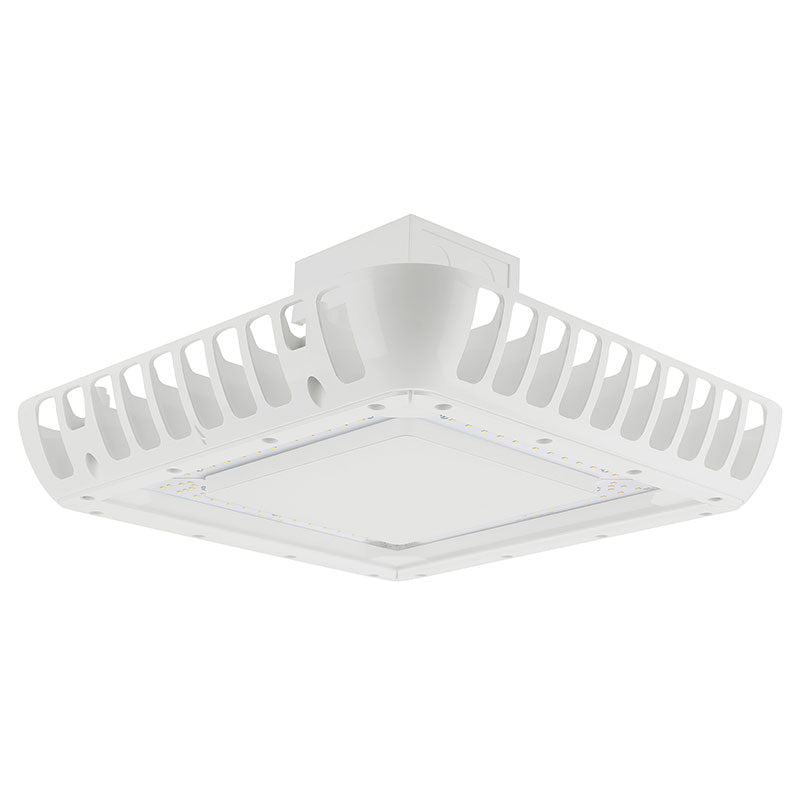

The photo shows a representative fixture from this range — appearance and size vary by configuration.

Manufacturer Warranty Five-year limited warranty.

Download Cut Sheet (PDF) Request a Quote

View Models & Pricing — click a model in the table to select it, then add to cart or request a quote for project and bid pricing, any quantity.

Model	Lumens	Price
	15000 lm	$98.67
	22000 lm	$110.80
	15000 lm	$106.80
	22000 lm	$137.34
	22000 lm	$142.14

Prices are per unit. Click a model to select it — or request a quote for project and bid pricing, any quantity.

MGC01 is a die-cast aluminum LED canopy fixture with a white finish, offered at 100W, 150W and 160W, in both a 120-277V and a 347-480V build.

Two lens options run through the range, and the choice is optical rather than cosmetic: a clear diffuser or a Type III lens. They are different parts with different light distributions, so check which one a given part number carries before it goes into a submittal. On a fixture mounted overhead, the lens is also most of what anyone below it ever sees.

Color temperature is offered at 4000K and 5000K at 70 CRI, and rated life is 50,000 hours. The rated ambient range is -40°C to 50°C (-40°F to 122°F). Every build is 0-10V dimmable.
