LED High Bay – MHB08

ForgeLightCoSKU: MHB08100W27VDDKYYYY2

Model: MHB08100W27VDDKYYYY2

Price:

$40.14

Quantity:

ModelMHB08100W27VDDKYYYY2SKUMHB08100W27VDDKYYYY2

Mester model	MHB08100W27VDDKYYYY2
Display label	100W · 120-277V
Wattage	100W
Lumens	16000 lm
Voltage	AC120-277V
Dimming	0-10V Dimmable
Led chip	2835
Cct	3000K/4000K/5000K (three selectable) or 4000K/5000K (two selectable)

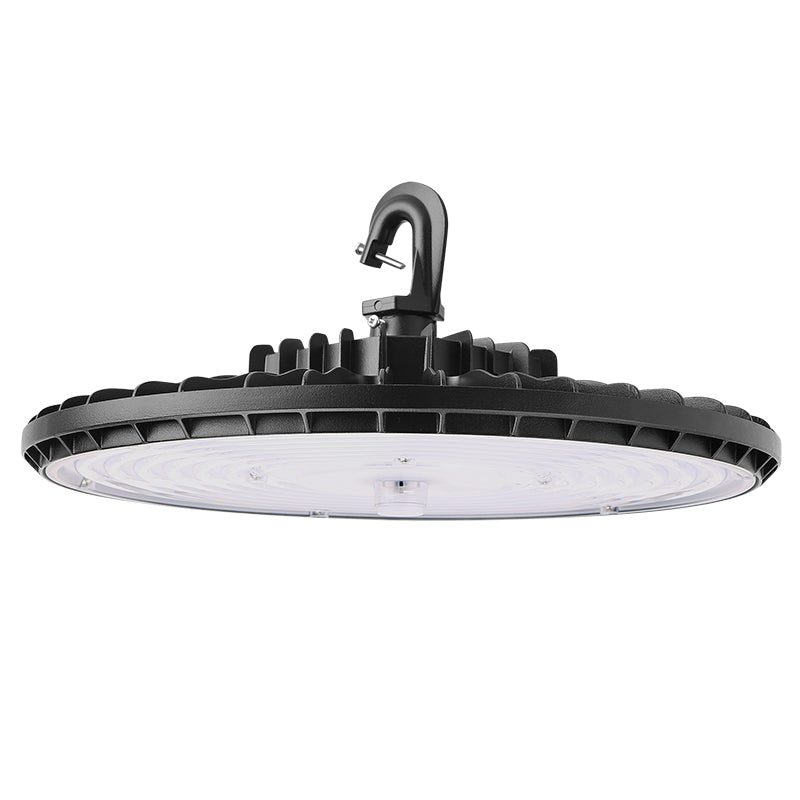

The photo shows a representative fixture from this range — appearance and size vary by configuration.

Manufacturer Warranty 5 year

Download Cut Sheet (PDF) Request a Quote

View Models & Pricing — click a model in the table to select it, then add to cart or request a quote for project and bid pricing, any quantity.

Model	Lumens	Price
	16000 lm	$40.14
	24000 lm	$56.51
	28000 lm	$47.60
	32000 lm	$66.56
	36000 lm	$75.52
	40000 lm	$75.52

Prices are per unit. Click a model to select it — or request a quote for project and bid pricing, any quantity.

MHB08 is a round LED high bay offered from 100W to 235W at 120-277V. The housing is die-cast, finished in a corrosion-resistant powder coat, and sealed to IP65.

The range uses two bodies rather than one. The 100W, 150W and 160W builds are Ø10.7 in; the 210W, 230W and 235W builds are Ø14.1 in at the same 7.5 in height, so the larger builds read as a wider disc rather than a scaled-up fixture. Accessory fit follows that split — the aluminum reflectors and the emergency-battery sets are specified per body group, not per family.

The 100W through 230W builds carry a two-position color-temperature dial for 4000K or 5000K. Color rendering is 70 CRI, rated life is 50,000 hours, and every build is 0-10V dimmable. The rated ambient range is -40°C to 50°C (-40°F to 122°F), except the 160W and 235W builds, which are rated to 45°C (113°F).
