MHB09 LED Low-Profile High Bay | 100W-155W

Roll over image to zoom in Click on image to zoom

ModelMHB09100W12VXXKYYYYYSKUMHB09100W12VXXKYYYYY

Mester model	MHB09100W12VXXKYYYYY
Display label	100W · 120VAC
Wattage	100W
Lumens	11000 lm
Voltage	120VAC
Dimming	Not
Led chip	2835
Cct	3000K/4000K/5000K

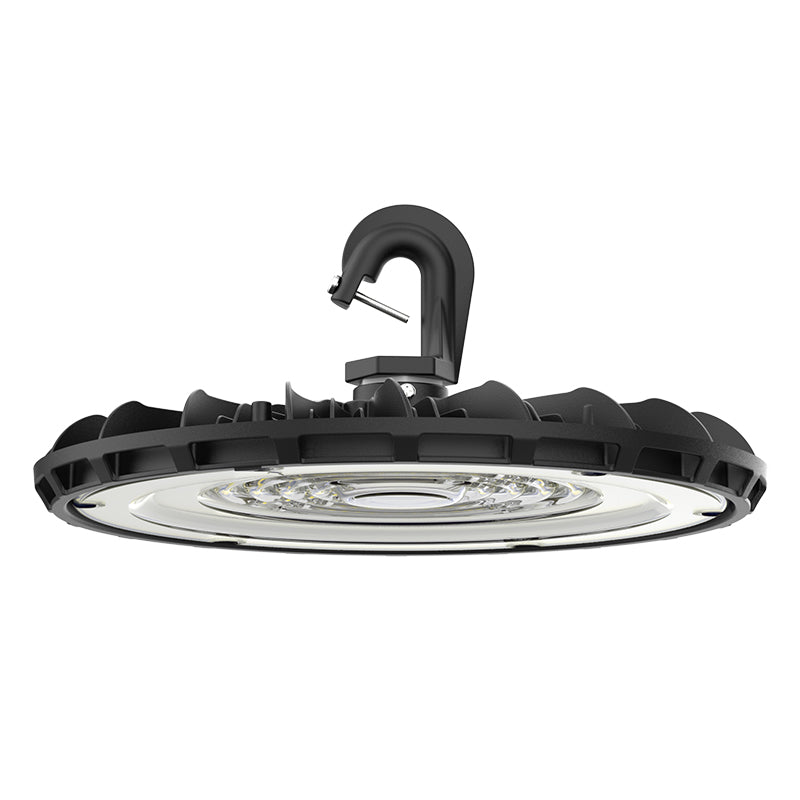

The photo shows a representative fixture from this range — appearance and size vary by configuration.

Manufacturer Warranty 3 year

Download Cut Sheet (PDF) Request a Quote

View Models & Pricing — click a model in the table to select it, then add to cart or request a quote for project and bid pricing, any quantity.

Model	Lumens	Price
	11000 lm	$24.54
	13000 lm	$26.54
	17400 lm	$56.51
	17400 lm	$56.51

Prices are per unit. Click a model to select it — or request a quote for project and bid pricing, any quantity.

MHB09 is a low-profile round LED high bay, offered at 100W, 120W and 155W on 120VAC, plus a 155W build at 230VAC. The housing is cast aluminum.

The range uses two bodies: the 100W and 120W builds are Ø9.8 in, the 155W builds Ø11.4 in, both about 4.5 in deep. Because the depth is fixed while the diameter grows, the larger build is a wider and flatter fixture rather than a scaled copy, and its heat-sink fin pattern differs from the smaller one.

Color temperature is set in the part number rather than on the fixture — 3000K, 4000K or 5000K, specified at order. Color rendering is 80 CRI and rated life is 50,000 hours; the rated ambient range is -40°C to 40°C (-40°F to 104°F). None of the builds are dimmable.

LED High Bay – MHB09

Specifications

Product Information

Models & Pricing

Description

LED High Bay – MHB09
