LED High Bay – FL-MHB13

ForgeLightCoSKU: FL-MHB13100W27VXXKYYYY2

Model: FL-MHB13100W27VXXKYYYY2

Price:

$97.50

Quantity:

Contractor pricing is applied automatically at checkout for approved contractor accounts. Apply for a contractor account.

ModelFL-MHB13100W27VXXKYYYY2SKUFL-MHB13100W27VXXKYYYY2

Display label	100W · 120-277V
Wattage	100W
Lumens	14500 lm
Voltage	AC120-277V
Dimming	0-10V Dimmable
Led chip	2835
Cct	3000K/4000K/5000K (feature copy mentions 2 selectable CCT 40K/50K, with option for 3 selectable CCT 30K/40K/50K)

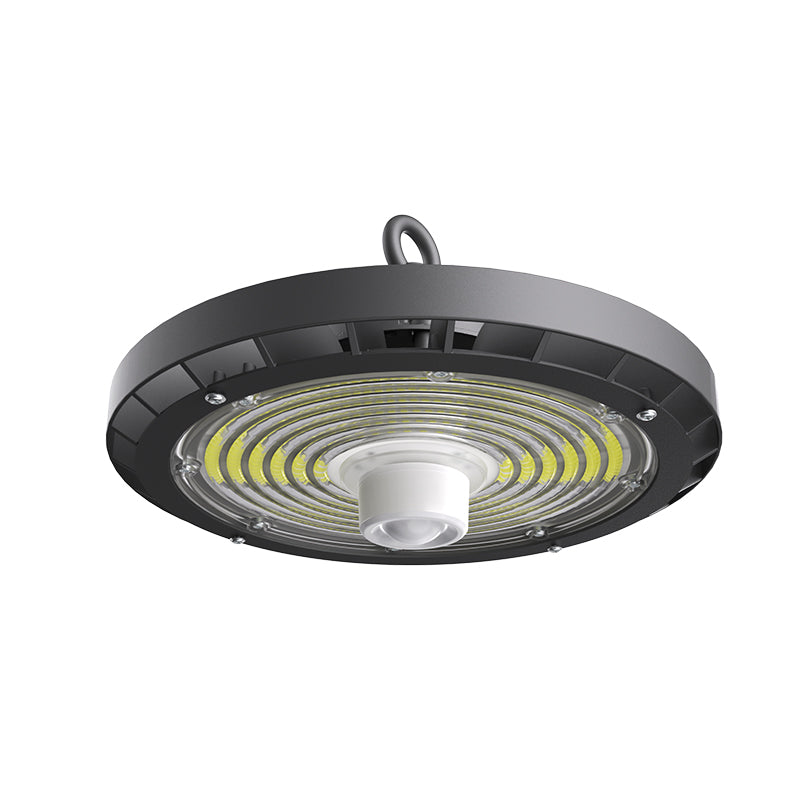

The photo shows a representative fixture from this range — appearance and size vary by configuration.

Input voltage for the high-voltage builds is confirmed at order. Request full specifications.

Manufacturer Warranty Five-year limited warranty.

Download Cut Sheet (PDF) Request a Quote

View Models & Pricing — click a model in the table to select it, then add to cart or request a quote for project and bid pricing, any quantity.

Model	Lumens	Price
	14500 lm	$97.50
	24000 lm	$102.00
	30000 lm	$120.00
	36000 lm	$138.00
	14500 lm	$132.00
	24000 lm	$136.50
	30000 lm	$154.50
	36000 lm	$205.50

Prices are per unit. Click a model to select it — or request a quote for project and bid pricing, any quantity.

FL-MHB13 is a round LED high bay offered at 100W, 165W, 215W and 250W, each in a 120-277V and a 347-480V build. All eight are 0-10V dimmable.

Three body sizes carry those wattages, and both the diameter and the depth change between them: Ø10.9 in x 6.1 in for the 100W and 165W, Ø11.7 in x 6.2 in for the 215W, and Ø12.5 in x 7.1 in for the 250W. Clearance and accessory fit therefore need checking per wattage rather than per family.

The housing is die-cast aluminum with a polycarbonate lens, rated IP65 for ingress and IK08 for impact. Distribution is 90° by default with a 120° option. Color rendering is 80 CRI, rated life is 50,000 hours, and the rated ambient range is -40°C to 45°C (-40°F to 113°F).
