Linear High Bay – MLH05

Name: Linear High Bay – MLH05
Brand: ForgeLightCo

ForgeLightCoSKU: MLH05-90W

Model: MLH05-90W

Price:

Quote required

Quantity:

Quote required

This fixture ships freight. Request a quote and we'll price shipping to your job.

Request a Quote

ModelMLH05-90WSKUMLH05-90W

Mester model	MLH05-90W
Display label	90W
Wattage	90W
Lumens	12200 lm
Voltage	120-277 VAC or 347-480 VAC
Dimming	1-10V dimming
Led chip	LED chips
Cct	4000K/5000K

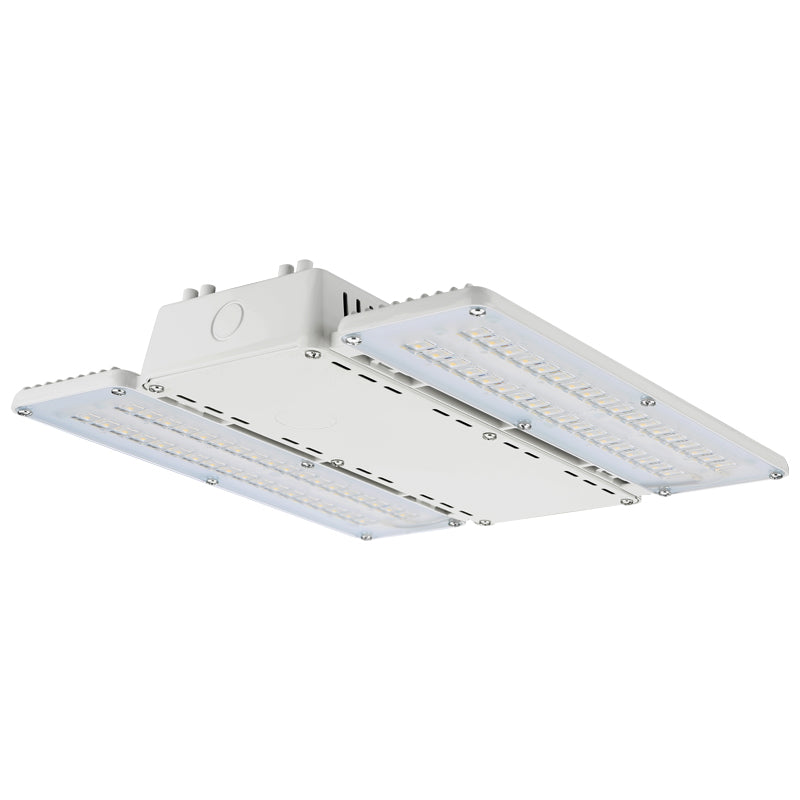

The photo shows a representative fixture from this range — appearance and size vary by configuration.

Manufacturer Warranty 5 year

Request a Cut Sheet Request a Quote

View Models & Pricing — click a model in the table to select it, then add to cart or request a quote for project and bid pricing, any quantity.

Model	Lumens	Price
	12200 lm	Quote required
	14000 lm	Quote required
	18300 lm	Quote required
	24300 lm	Quote required
	30300 lm	Quote required
	36400 lm	Quote required
	49000 lm	Quote required
	60000 lm	Quote required

Prices are per unit. Click a model to select it — or request a quote for project and bid pricing, any quantity.

Linear High Bay MLH05 — available through ForgeLightCo on a quote basis. It is listed in eight wattages from 90W to 420W. Color temperature options as listed: 4000K and 5000K. Listed output runs from 12,200 to 60,000 lumens across the range.

Input is listed at 120-277 VAC or 347-480 VAC, with 1-10V dimming. Each version lists a 100,000-hour lifespan. The listed operating range is -40°C to 55°C (-40°F to 131°F).

This is a quote item: send the wattage, quantity and any site details through the quote form and the ForgeLightCo team will follow up with a written quote.
