FL-MLH07 Linear High Bay | 130W-410W, Selectable CCT

Roll over image to zoom in Click on image to zoom

ModelFL-MLH07130W27VDDKWPDSKUFL-MLH07130W27VDDKWPD

Display label	130W · 120-277V
Wattage	130W
Lumens	18500 lm
Voltage	120-277V
Dimming	0-10V Dimmable
Led chip	2835
Cct	4000K/5000K (CCT selectable)

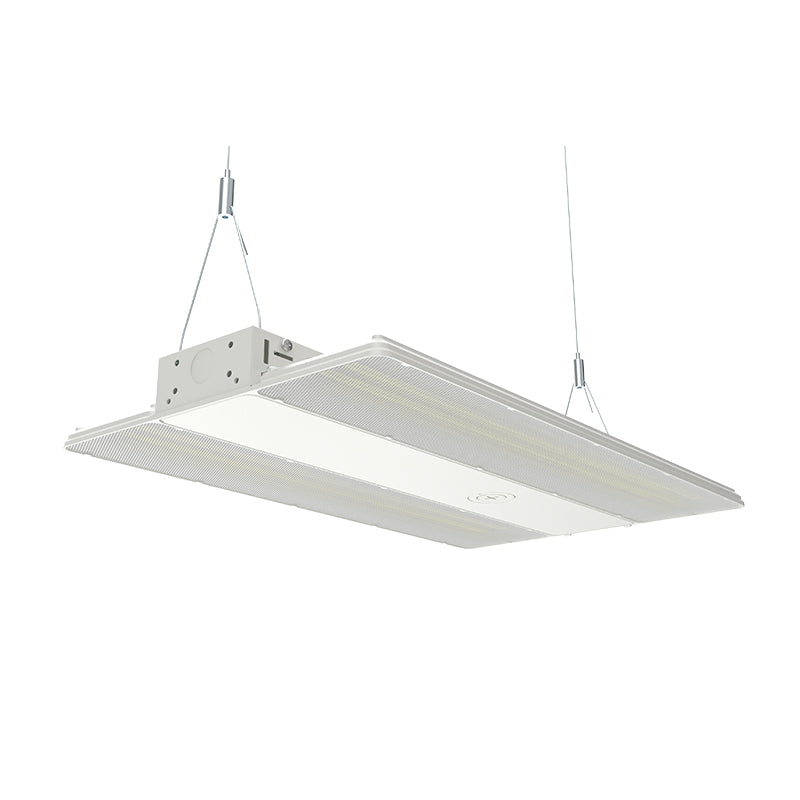

The photo shows a representative fixture from this range — appearance and size vary by configuration.

Manufacturer Warranty Five-year limited warranty.

Download Cut Sheet (PDF) Request a Quote

View Models & Pricing — click a model in the table to select it, then add to cart or request a quote for project and bid pricing, any quantity.

Model	Lumens	Price
	18500 lm	$109.50
	24100 lm	$127.50
	30500 lm	$133.50
	36100 lm	$178.50
	42000 lm	$190.50
	61000 lm	$262.50
	18500 lm	$166.50
	24100 lm	$174.00
	30500 lm	$183.00
	36100 lm	$219.00
	42000 lm	$244.50
	61000 lm	$345.00

Prices are per unit. Click a model to select it — or request a quote for project and bid pricing, any quantity.

The FL-MLH07 is a linear high bay built on a die-cast aluminum body with a polycarbonate lens. It runs from 130W to 410W, in both 120-277V and 347-480V input classes, and every model is 0-10V dimmable.

The configurations offered here are the white-finish, prismatic-diffuser build. Aisle and narrow optics are documented for this family but are not what these models carry, so specify the optic explicitly if a job needs a tighter distribution. Color temperature is selectable between 4000K and 5000K, CRI is above 80, and the fixture is rated for ambient temperatures from -40°C to 50°C with a 50,000 hour rated life.

Length is not constant across the range. FL-MLH07 is built in four length bands keyed to output, and the largest is a doubled build rather than a single housing, using two mounting points instead of one. Confirm the physical size against the wattage you specify.

A plug-in motion sensor and an emergency battery can be ordered with the fixture, and wire guards sized per length band are available as compatible accessories.
