Name: Post Top Light – MPL01
Brand: ForgeLightCo

Roll over image to zoom in Click on image to zoom

ModelMPL01130W27VDDKYYYYSKUMPL01130W27VDDKYYYY

Mester model	MPL01130W27VDDKYYYY
Display label	130W · 120-277V
Wattage	130W
Lumens	17200 lm
Voltage	AC120-277V
Dimming	0-10V Dimmable
Led chip	2835
Cct	3000K/4000K/5000K

Manufacturer Warranty 5 YEAR LIMITED WARRANTY*

Download Cut Sheet (PDF) Request a Quote

View Models & Pricing — click a model in the table to select it, then add to cart or request a quote for project and bid pricing, any quantity.

Model	Lumens	Price
	17200 lm	$265.20Quote required

Prices are per unit. Click a model to select it — or request a quote for project and bid pricing, any quantity.

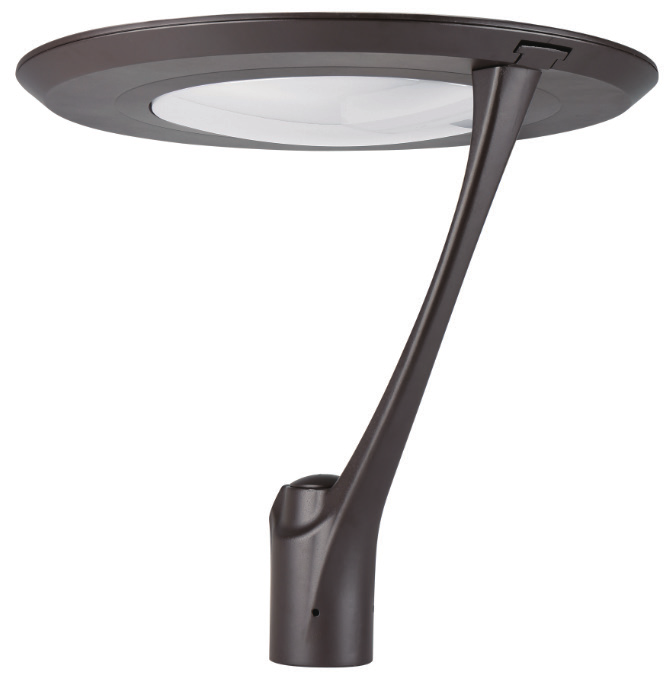

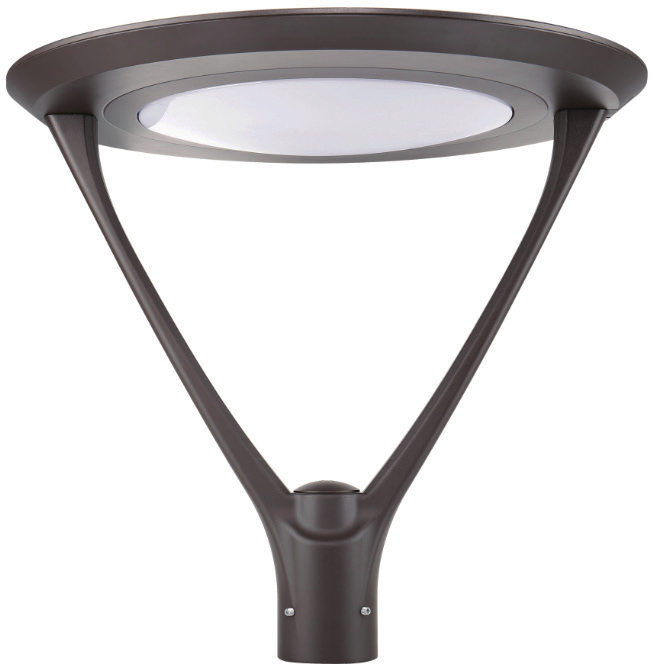

The MPL01 is a post-top luminaire for parking lots, campus walkways and other pole-mounted site lighting. One configuration is offered: a 130W build on 120-277V input, 0-10V dimmable.

Color temperature and output are both dial-set at the fixture. The color dial offers 3000K, 4000K and 5000K, so one part number serves all three without re-ordering. CRI is 70, the housing is die-cast aluminum, and the fixture is rated for ambient temperatures from -40°C to 45°C with a 50,000 hour rated life.

A 3-pin 120-277V photocell and a motion sensor can be ordered with the fixture. This configuration is quoted rather than sold through the cart.
