MRL02 LED Roadway Light | 70W, 105W, 150W

Roll over image to zoom in Click on image to zoom

ModelMRL0270W27VXXKYYYYSKUMRL0270W27VXXKYYYY

Mester model	MRL0270W27VXXKYYYY
Display label	70W · 120-277V
Wattage	70W
Lumens	9900 lm
Voltage	120-277V
Dimming	0-10V Dimmable
Led chip	5050
Cct	3000K/3500K/4000K/5000K

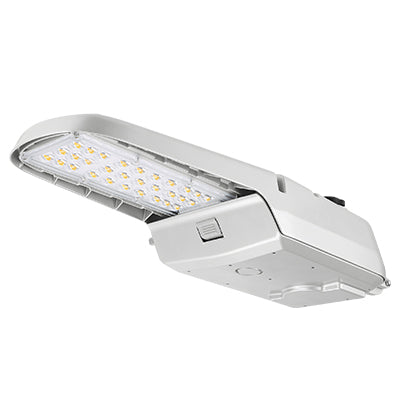

The photo shows a representative fixture from this range — appearance and size vary by configuration.

Manufacturer Warranty 5 year

Download Cut Sheet (PDF) Request a Quote

View Models & Pricing — click a model in the table to select it, then add to cart or request a quote for project and bid pricing, any quantity.

Model	Lumens	Price
	9900 lm	$78.27
	14600 lm	$87.07
	20000 lm	$130.54
	20000 lm	$173.47

Prices are per unit. Click a model to select it — or request a quote for project and bid pricing, any quantity.

The MRL02 is a roadway and area luminaire on a heavy-duty cast aluminum housing, offered at 70W, 105W and 150W. The 70W and 105W run on 120-277V; the 150W is available in both 120-277V and 347-480V. All four configurations are 0-10V dimmable.

Distribution is Type III across the range, and Type II is available on the 150W only, so a specification calling for Type II has to land on the largest output. Color temperature options are 3000K, 4000K and 5000K, CRI is 70 minimum, and the fixture is rated for ambient temperatures from -40°C to 40°C with a 50,000 hour rated life.

The 150W is not a scaled version of the smaller two. It is a physically larger and deeper body with a different LED array layout, and it carries its own effective projected area. Size poles and brackets against the specific wattage rather than against the family.
