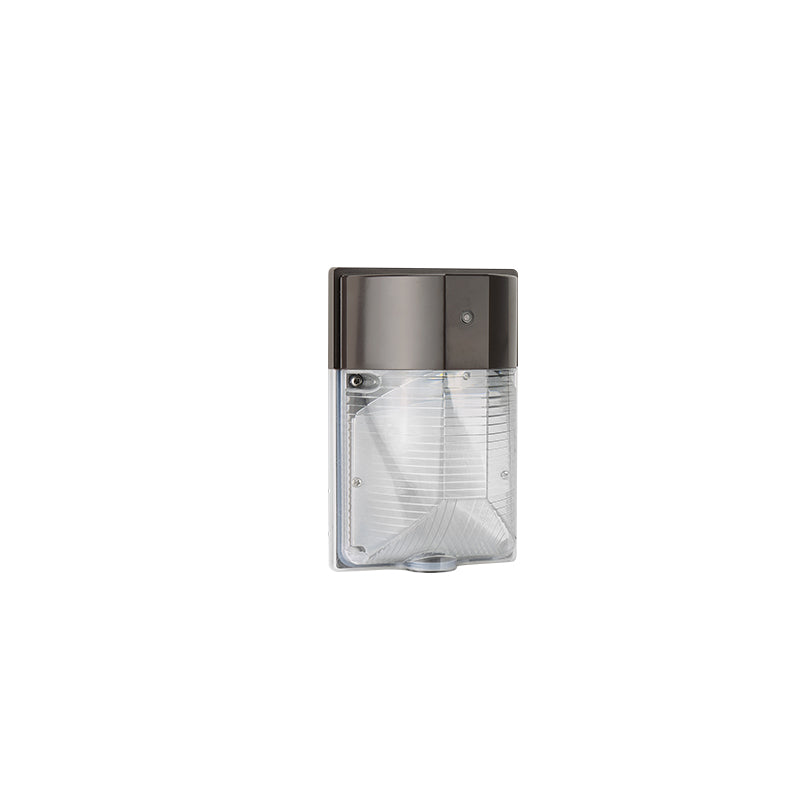

MWM01 LED Wall Pack, 17W and 25W

Roll over image to zoom in Click on image to zoom

ModelWM17W27VXXKYYSKUWM17W27VXXKYY

Mester model	WM17W27VXXKYY
Display label	17W · 120-277V
Wattage	17W
Lumens	1950 lm
Voltage	AC120-277V
Dimming	Not
Led chip	2835
Cct	3000K/4000K/5000K

Manufacturer Warranty 5 year

Download Cut Sheet (PDF) Request a Quote

View Models & Pricing — click a model in the table to select it, then add to cart or request a quote for project and bid pricing, any quantity.

Model	Lumens	Price
	1950 lm	$25.87
	2600 lm	$27.20

Prices are per unit. Click a model to select it — or request a quote for project and bid pricing, any quantity.

MWM01 is a compact exterior wall pack built in two outputs, 17W and 25W. Both sit in the same housing, because the wattage changes the driver current rather than the enclosure, so the two install to the same footprint.

Both take a 120-277V input and are non-dimming builds. Color temperatures documented for the series are 3000K, 4000K and 5000K, color rendering is 70 CRI, and rated life is 50,000 hours. The ambient rating runs from -40°C to 40°C.

The two outputs are separate order codes. Select the one you need to see its output and code.
