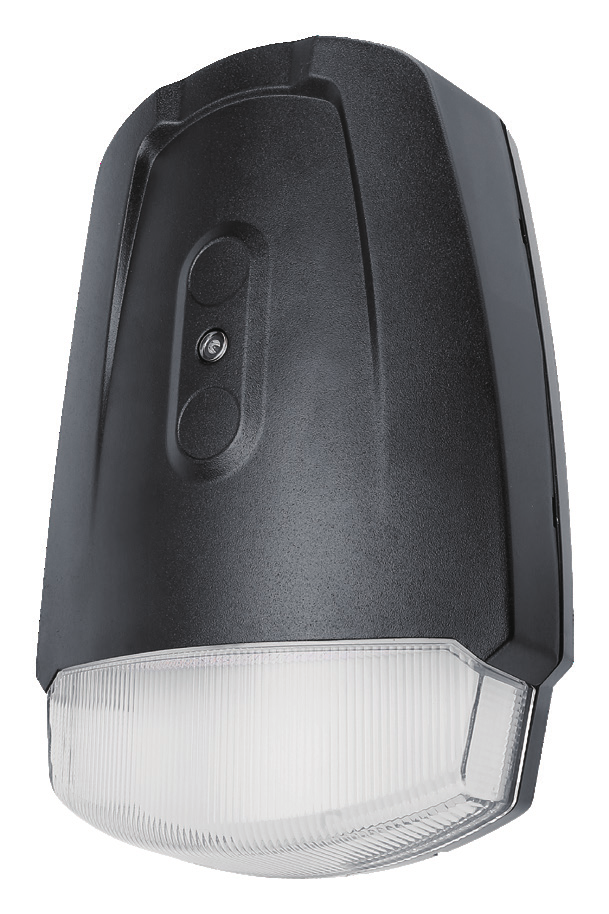

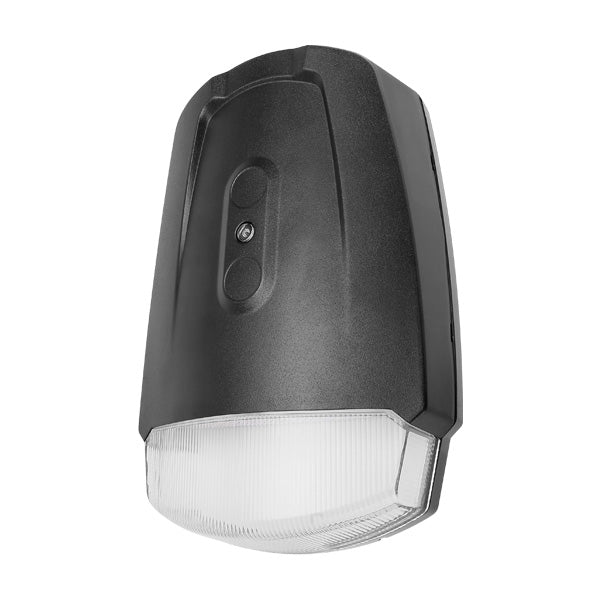

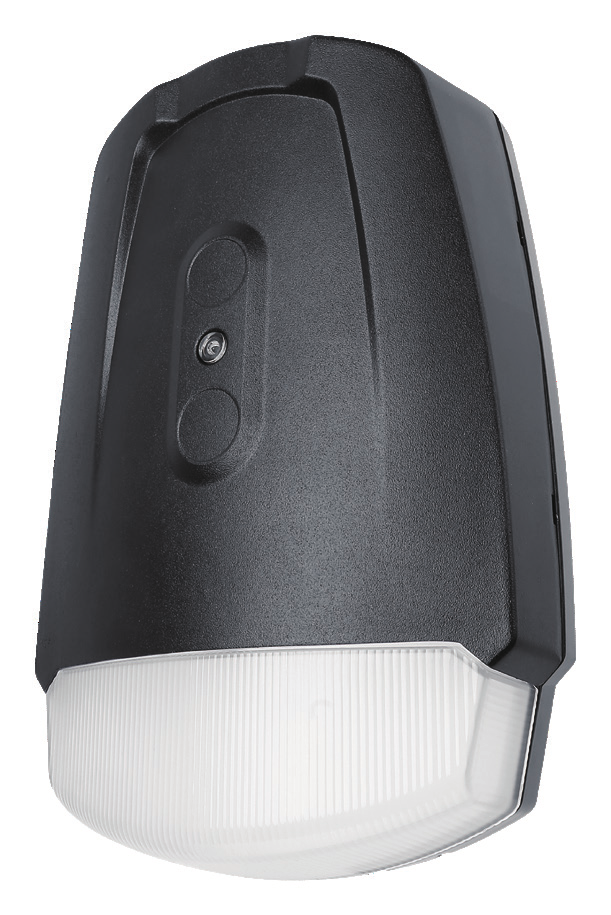

MWM02 LED Wall Pack, 10W and 20W

Roll over image to zoom in Click on image to zoom

ModelMWM0210W27VDDKYPBYYYSKUMWM0210W27VDDKYPBYYY

Mester model	MWM0210W27VDDKYPBYYY
Display label	10W · 120-277V
Wattage	10W
Lumens	1400 lm
Voltage	AC120-277V
Dimming	Not
Led chip	2835
Cct	3000K/4000K/5000K Selectable (field-adjustable switch)

Manufacturer Warranty 5 year

Download Cut Sheet (PDF) Request a Quote

View Models & Pricing — click a model in the table to select it, then add to cart or request a quote for project and bid pricing, any quantity.

Model	Lumens	Price
	1400 lm	$36.67
	2660 lm	$40.81

Prices are per unit. Click a model to select it — or request a quote for project and bid pricing, any quantity.

MWM02 is a low-wattage exterior wall pack built in one housing across both of its outputs, 10W and 20W. The two differ in driver current rather than enclosure, so they install to the same footprint.

Color temperature is selected on the fixture with an on-board switch at 3000K, 4000K or 5000K. Both builds take a 120-277V input and are non-dimming. Rated life is 50,000 hours.

The ambient rating runs from -20°C to 40°C. Confirm that against the low-temperature end of your specification before you commit to it.
