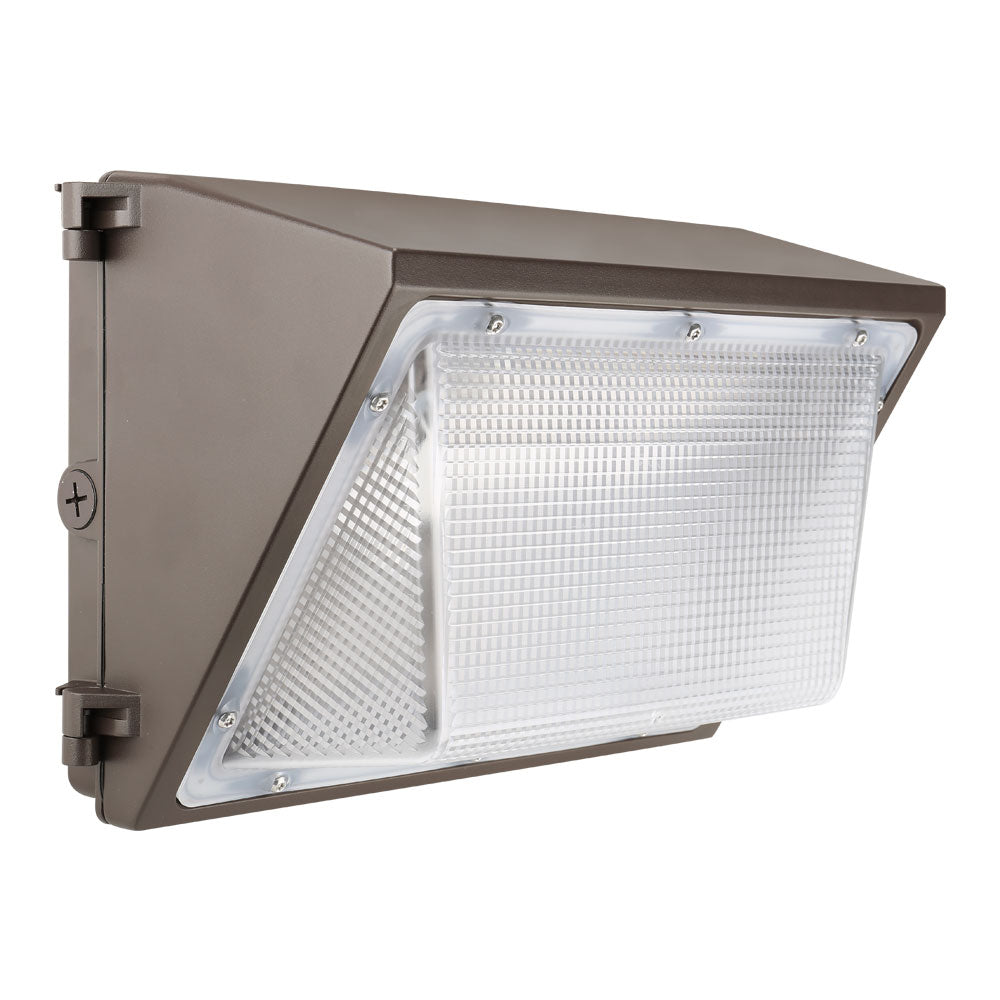

MWP08 LED Wall Pack, 30W to 125W

Roll over image to zoom in Click on image to zoom

ModelMWP0830W27V50KYYSKUMWP0830W27V50KYY

Mester model	MWP0830W27V50KYY
Display label	30W · 120-277V
Wattage	30W
Lumens	3500 lm
Voltage	AC120-277V
Dimming	0-10V Dimmable
Led chip	2835
Cct	4000K/5000K (features section adds: 65W, 100W optional with color temperature adjustable 3000K, 4000K, 5000K)

Manufacturer Warranty 5 year

Download Cut Sheet (PDF) Request a Quote

View Models & Pricing — click a model in the table to select it, then add to cart or request a quote for project and bid pricing, any quantity.

Model	Lumens	Price
	3500 lm	$101.12
	4850 lm	$101.12
	7900 lm	$55.74
	10800 lm	$63.20
	15400 lm	$109.12
	12800 lm	$66.00
	12800 lm	$111.60
	3500 lm	$101.12
	4850 lm	$101.12
	7900 lm	$52.40
	10800 lm	$57.07
	15400 lm	$109.12

Prices are per unit. Click a model to select it — or request a quote for project and bid pricing, any quantity.

MWP08 is a full-size exterior wall pack built on one die-cast housing across its whole range, 30W to 125W. Stepping the wattage changes what is inside the fixture, not the enclosure, so a specification can move up or down the range without changing the footprint on the wall.

Color temperature splits the range. The 65W and 100W builds carry a dial that spans 3000K, 4000K and 5000K; the remaining wattages are single-CCT builds, and the codes carried here are the 5000K versions. Every build takes a 120-277V input. Check the dimming entry on the model you select, since it is not uniform across the range.

Color rendering is 70 CRI, rated life is 50,000 hours, and the ambient rating runs from -40°C to 40°C.
