MWP10 IP65 LED Wall Pack, 40W and 80W

Roll over image to zoom in Click on image to zoom

ModelMWP1040W27VDDKYDYYSKUMWP1040W27VDDKYDYY

Mester model	MWP1040W27VDDKYDYY
Display label	40W · 120-277V
Wattage	40W
Lumens	5300 lm
Voltage	AC120-277V
Dimming	0-10V Dimmable
Led chip	2835
Cct	3000K/4000K/5000K

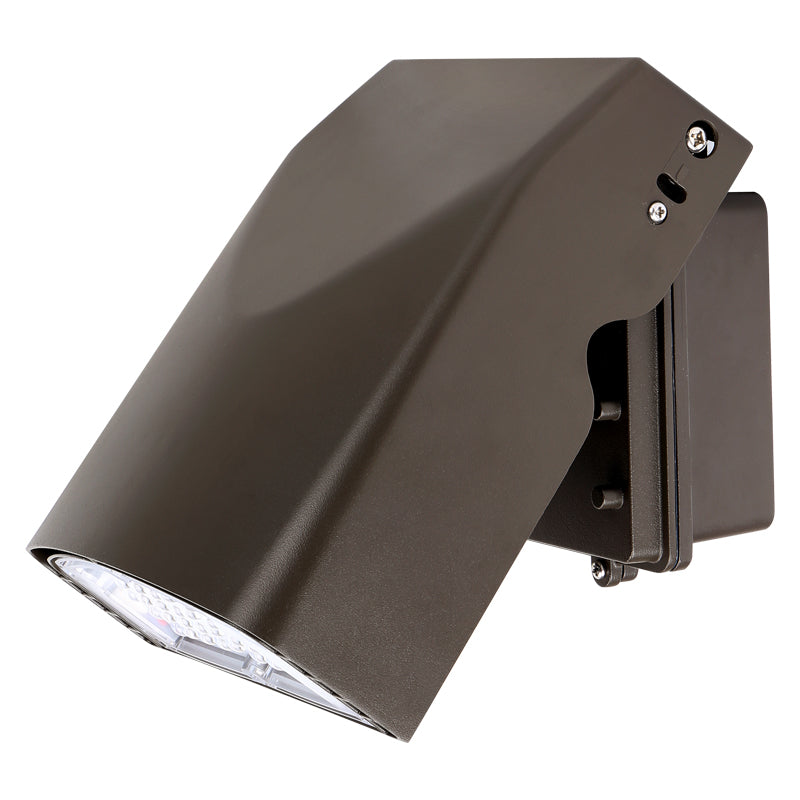

The photo shows a representative fixture from this range — appearance and size vary by configuration.

Manufacturer Warranty Five-year warranty.

Download Cut Sheet (PDF) Request a Quote

View Models & Pricing — click a model in the table to select it, then add to cart or request a quote for project and bid pricing, any quantity.

Model	Lumens	Price
	5300 lm	$101.12
	11200 lm	$104.76

Prices are per unit. Click a model to select it — or request a quote for project and bid pricing, any quantity.

MWP10 is an exterior wall pack with a die-cast body and a UV-stabilized polycarbonate lens, rated IP65. It comes in two outputs, 40W and 80W, and they are not the same fixture: the 40W uses the family’s smaller body and the 80W the larger one, with different footprints.

Both carry a color-temperature dial spanning 3000K, 4000K and 5000K, take a 120-277V input, and dim over 0-10V. Color rendering is 70 CRI, rated life is 50,000 hours, and the ambient rating runs from -40°C to 40°C.

If a job uses both outputs, treat them as two different fixtures rather than two settings of one.
